当开发者需要在程序中扩展或者新增功能时，但是没有源码，在API Hooking的条件下，可以不知道源码而去修改程序执行流

Detours Hooking

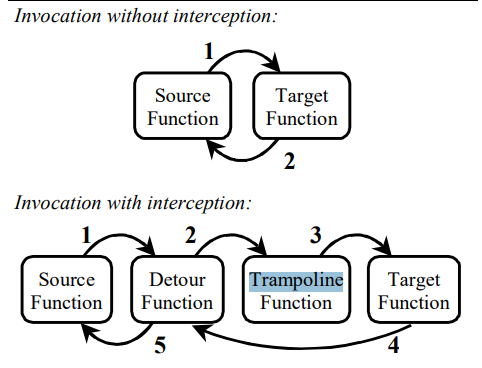

Detours，是一个用于在 x86 机器上检测任意 Win32 函数的库，Detours 通过重写目标函数映像来拦截 Win32 函数，Detours 包还包含用于将任意 DLL 和数据段（payload）附加到任何 Win32 二进制文件的实用程序，现在也支持x64。


Detour Function完全由攻击者控制

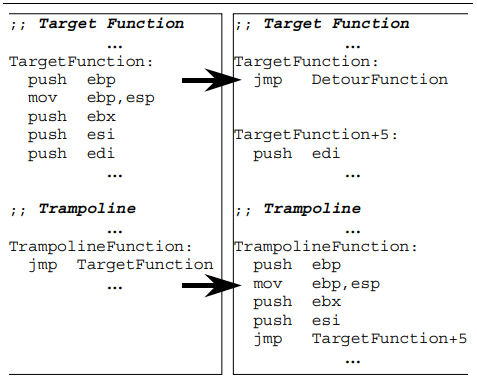

这里 TargetFunction+5 的原因是因为jmp指令的长度是5字节，原来的代码从push ebp开始到push edi也是5字节

Demo

hookme.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#include <windows.h>
#include <stdio.h>
#include <stdlib.h>
#pragma comment(lib, "user32.lib")

int main(void){

	printf("hookme.exe: Starting.\n");

	MessageBox(NULL, "First message", "HOOKS", MB_OK);
	MessageBox(NULL, "Second message", "HOOKS", MB_OK);
	MessageBox(NULL, "Third message", "HOOKS", MB_OK);

	printf("hookme.exe: Roger and out!\n");

    return 0;
}

现在要Hook MessageBox

hookem.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
#include <stdio.h>
#include <windows.h>
#include "detours.h"
#pragma comment(lib, "user32.lib")

// pointer to original MessageBox
// 要hook messageBox，需要messagebox的地址
int (WINAPI * pOrigMessageBox)(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType) = MessageBox;
BOOL Hookem(void);
BOOL UnHookem(void);

// Hooking function
// Detour Function
int HookedMessageBox(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType) {

	printf("HookedMessageBox() called. No popup on screen!\n");

	return IDOK;
}

// Set hooks on MessageBox
BOOL Hookem(void) {

    LONG err;
	// 通过Detour进行的Hook都是经Transaction实现的
	DetourTransactionBegin();
	DetourUpdateThread(GetCurrentThread());
	DetourAttach(&(PVOID&)pOrigMessageBox, HookedMessageBox);
	err = DetourTransactionCommit();

	printf("MessageBox() hooked! (res = %d)\n", err);

	return TRUE;
}

// Revert all changes to original code
BOOL UnHookem(void) {

	LONG err;

	DetourTransactionBegin();
	DetourUpdateThread(GetCurrentThread());
	DetourDetach(&(PVOID&)pOrigMessageBox, HookedMessageBox);
	err = DetourTransactionCommit();

	printf("Hook removed from MessageBox() with result = %d\n", err);

	return TRUE;
}

BOOL WINAPI DllMain(HINSTANCE hinst, DWORD dwReason, LPVOID reserved) {

    switch (dwReason)  {
		case DLL_PROCESS_ATTACH:
            // dll加载的时候Hook
			Hookem();
			break;

		case DLL_THREAD_ATTACH:
			break;

		case DLL_THREAD_DETACH:
			break;

		case DLL_PROCESS_DETACH:
            // dll卸载的时候unhook
			UnHookem();
			break;
	}

    return TRUE;
}

编译成dll然后注入

也可以xdbg里在messagebox处打断点，看执行的汇编代码变化

IAT Hooking

修改导入表里函数的地址，通过获取当前进程的指定API的地址，然后拿去和IAT表里的匹配，如果匹配上就修改地址

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
#include <stdio.h>
#include <windows.h>
#include <dbghelp.h>

#pragma comment(lib, "user32.lib")
#pragma comment (lib, "dbghelp.lib")

// pointer to original MessageBox
int (WINAPI * pOrigMessageBox)(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType) = MessageBox;


// Hooking function
int HookedMessageBox(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType) {

	printf("HookedMessageBox() called. No popup on screen!\n");

	pOrigMessageBox(hWnd, "You loose!", "TROLOLOLO", uType);
	return IDOK;
}


// Set hook on origFunc()
BOOL Hookem(char * dll, char * origFunc, PROC hookingFunc) {

    ULONG size;
	DWORD i;
	BOOL found = FALSE;

	// get a HANDLE to a main module == BaseImage
	HANDLE baseAddress = GetModuleHandle(NULL);

	// get Import Table of main module
	PIMAGE_IMPORT_DESCRIPTOR importTbl = (PIMAGE_IMPORT_DESCRIPTOR) ImageDirectoryEntryToDataEx(
												baseAddress,
												TRUE,
												IMAGE_DIRECTORY_ENTRY_IMPORT,
												&size,
												NULL);

	// find imports for target dll
	for (i = 0; i < size ; i++){
		char * importName = (char *)((PBYTE) baseAddress + importTbl[i].Name);
		if (_stricmp(importName, dll) == 0) {
				found = TRUE;
				break;
		}
	}
	if (!found)
		return FALSE;

	// Optimization: get original address of function to hook
	// and use it as a reference when searching through IAT directly
	PROC origFuncAddr = (PROC) GetProcAddress(GetModuleHandle(dll), origFunc);

	// Search IAT
	PIMAGE_THUNK_DATA thunk = (PIMAGE_THUNK_DATA) ((PBYTE) baseAddress + importTbl[i].FirstThunk);
	while (thunk->u1.Function) {
		PROC * currentFuncAddr = (PROC *) &thunk->u1.Function;

		// found
		if (*currentFuncAddr == origFuncAddr) {

			// make sure memory is writable
			DWORD oldProtect = 0;
			VirtualProtect((LPVOID) currentFuncAddr, 4096, PAGE_READWRITE, &oldProtect);

			// set the hook
			*currentFuncAddr = (PROC)hookingFunc;

			// revert protection setting back
			VirtualProtect((LPVOID) currentFuncAddr, 4096, oldProtect, &oldProtect);

			printf("IAT function %s() hooked!\n", origFunc);
			return TRUE;
		}
	thunk++;
	}

	return FALSE;
}

BOOL WINAPI DllMain(HINSTANCE hinst, DWORD dwReason, LPVOID reserved) {

    switch (dwReason)  {
		case DLL_PROCESS_ATTACH:
			Hookem("user32.dll", "MessageBoxA", (PROC) HookedMessageBox);
			break;

		case DLL_THREAD_ATTACH:
			break;

		case DLL_THREAD_DETACH:
			break;

		case DLL_PROCESS_DETACH:
			break;
	}

    return TRUE;
}

In-line Hooking

通过修改机器码的方式来实现hook

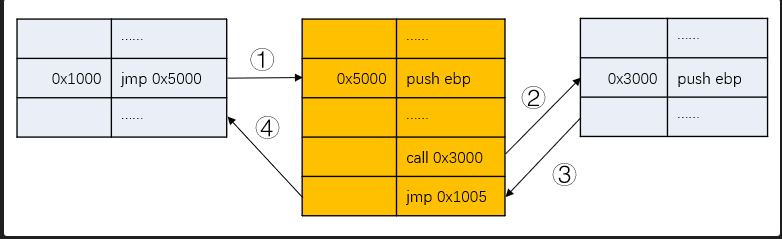

可能会读取或者修改call指令执行之前所压入栈的内容。那么，我们可以将call指令替换成jmp指令，jmp到我们自己编写的函数，在函数里call原来的函数，函数结束后再jmp回到原先call指令的下一条指令


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
#include <stdio.h>
#include <windows.h>
#include <dbghelp.h>

#pragma comment(lib, "user32.lib")
#pragma comment (lib, "dbghelp.lib")

#define ORIG_BYTES_SIZE 14

BOOL Hookem(FARPROC hookingFunc);
// pointer to original MessageBox
typedef int (WINAPI * OrigMessageBox_t)(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType);
OrigMessageBox_t pOrigMessageBox = NULL;

// storage for original bytes from MessageBox
char OriginalBytes[ORIG_BYTES_SIZE] = { 0 };


// Hooking function
int HookedMessageBox(HWND hWnd, LPCTSTR lpText, LPCTSTR lpCaption, UINT uType) {
	SIZE_T bytesOut = 0;

	printf("HookedMessageBox() called. No popup on screen!\n");
	// 跳回原来的函数
	WriteProcessMemory(GetCurrentProcess(), (LPVOID)pOrigMessageBox, OriginalBytes, ORIG_BYTES_SIZE, &bytesOut);
	pOrigMessageBox(hWnd, lpText, lpCaption, uType);
	Hookem((FARPROC) HookedMessageBox);

	return IDOK;
}


// Set a hook by patching code
BOOL Hookem(FARPROC hookingFunc) {

	SIZE_T bytesIn = 0;
	SIZE_T bytesOut = 0;

	// save original address of MessageBoxA
	pOrigMessageBox = (OrigMessageBox_t) GetProcAddress(GetModuleHandle("user32.dll"), "MessageBoxA");

	// copy ORIG_BYTES_SIZE btes of original code from MessageBoxA
	ReadProcessMemory(GetCurrentProcess(), pOrigMessageBox, OriginalBytes, ORIG_BYTES_SIZE, &bytesIn);

	// src: https://www.ragestorm.net/blogs/?p=107
	// create a patch <14 bytes> with JMP [RIP+0]; <ADDR64>
	// \xFF\x25\x00\x00\x00\x00 这6个字节是jmp的字节码
	// \x00\x11\x22\x33\x44\0x55\x66\x77
	char patch[14] = { 0 };
	memcpy(patch, "\xFF\x25", 2);
	memcpy(patch + 6, &hookingFunc, 8);

	// patch the MessageBoxA
	WriteProcessMemory(GetCurrentProcess(), (LPVOID) pOrigMessageBox, patch, sizeof(patch), &bytesOut);

	printf("IAT MessageBoxA() hooked!\n");
	printf("HookedMessageBox @ %p ; OriginalBytes @ %p\n", HookedMessageBox, OriginalBytes);

	return FALSE;
}


BOOL WINAPI DllMain(HINSTANCE hinst, DWORD dwReason, LPVOID reserved) {

    switch (dwReason)  {
		case DLL_PROCESS_ATTACH:
			Hookem((FARPROC) HookedMessageBox);
			break;

		case DLL_THREAD_ATTACH:
			break;

		case DLL_THREAD_DETACH:
			break;

		case DLL_PROCESS_DETACH:
			break;
	}

    return TRUE;
}

但是Hook的函数再往原先的函数跳比较难以实现，包括参数、上下文等不太好恢复
